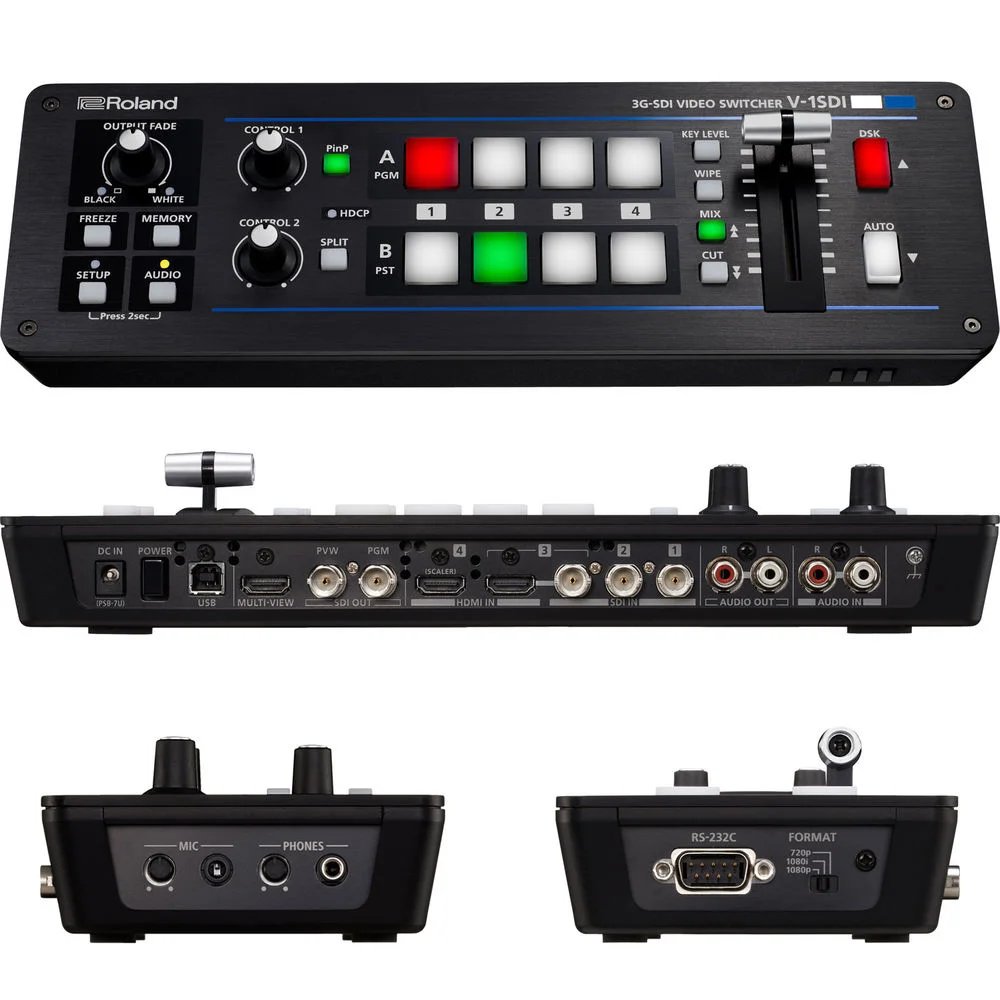

Roland V-1SDI – 3G SDI Video Switcher
Harga aslinya adalah: Rp43.820.000.Rp39.400.000Harga saat ini adalah: Rp39.400.000.
Stok 100
Last chance! Sale ends in
Stok 100
Pengiriman
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
DHL Courier delivery
DHL courier will deliver to the specified address
1-3 Days
From $40
Warranty 1 year
Free 30-Day returns
Description
Roland’s V-1SDI 4-Channel HD Video Switcher supports HD-only video signals over three of its inputs, and can support SD, HD, and computer video formats up to 1920 x 1200 (WUXGA) at 60 Hz on its fourth. It supports progressive and interlaced material, internally converting the interlaced footage to progressive for processing. Featuring a preview, program, and multiview output, you can easily monitor all your inputs at once on the multiview while isolating your preview and program screens.
The HDMI inputs and multiview output are HDCP compliant, while the SDI inputs and SDI preview and program outputs support SMPTE 424M (SMPTE 425M-AB), 292M, and 259M-C. You can control the unit via the built-in RS-232 port, or via a PC using the USB connection. Eight memory functions enable you to recall specific setups, which makes it easier to get up and running when the switcher is shared among different productions. Built-in features include image freeze and output fades.
Video Input
- The switcher handles four video inputs, up to three SDI and up to two HDMI. Inputs 1 to 3 are SDI, with input 3 shared between SDI and HDMI with support for HD video formats. Input 4 is HDMI-only and, in addition to supporting HD video, also supports SD and computer formats.
- Audio Input
- The switcher supports analog audio on as well as mic input with or without plug-in power.
- Video Effects
-
- Transition: Cut, Mix (Dissolve/Fam/Nam/Mosaic), Wipe (30 types)
- Composition: PiP, Split, Quad, DSK (Luminance key, Chroma key)
- Audio Effects
- EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect
- Multiviewer
- This output can display all active inputs on the same screen via the HDMI output.
- Functions
-
- The built-in memory function allows the memorization and convenient recall of panel settings, such as effect assignment to each button. The memory stores up to eight configurations and keeps stored settings, even with the power off
- Freeze video input
- Fade audio output
- Fade video to white or black
- HDCP
- The V-1SDI HDMI inputs and outputs are HDCP compliant.
-
Specifications
Processing Video Processing 8-bit 4:2:2 (YPbPr) Audio Processing 24-bit at 48 kHz Input Signal Formats SDI Inputs 1 to 3
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50
Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-CHDMI Input 3
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50
HDCP supported
Input 4
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50
480p: 59.94
576p: 50
480i: 59.94
576i: 50
WUXGA: 1920 x 1200 @ 60 Hz
UXGA: 1600 x 1200 @ 60 Hz
SXGA+: 1400 x 1050 @ 60 Hz
FWXGA: 1366 x 768 @ 60 Hz
SXGA: 1280 x 1024 @ 60 Hz
WXGA: 1280 x 768 @ 60 Hz
XGA: 1024 x 768 @ 60 Hz
SVGA: 800 x 600 @ 60 Hz
VGA: 640 x 480 @ 60 Hz
HDCP supportedOutput Signal Formats Program & Preview Output SDI
1080p: 59.94/50
1080i: 59.94/50
720p: 59.94/50
Conforms to SMPTE 424M (SMPTE 425M-AB), 292M, 259M-CMultiView HDMI
HDCP supportedInput Level Audio In: -10 dBu (Maximum: +8 dBu)
Mic: -41 to -13 dBu (Maximum: -1 dBu)Output Level Audio Out: -10 dBu (Maximum: +8 dBu)
Phones: 92 mW + 92 mW (32 Ohms)Connectors Input Video
3 x SDI, BNC
2 x HDMI Type-A
Audio
Analog: RCA phono
Mic: Stereo mini jackOutput Program
1 x SDI, BNC
Preview
1 x SDI, BNC
Multiview
1 x HDMI Type-A
Audio
Analog: RCA phono
Headphones: Stereo mini jackRemote USB Type-B (for remote control from PC)
RS-232: DB-9Audio Impedance Input
Audio: 15 kOhms
Mic: 10 kOhms
Output
Audio: 1 kOhms
Phones: 10 OhmsGeneral Power Supply (AC) AC adapter Current Draw 2.1 A Power Consumption 25 W Operating Temperature 32 to 104°F / 0 to 40°C Dimensions (H x W x D) 12.3 x 4.3 x 2.3″ / 31.3 x 10.8 x 5.9 cm Weight 2.6 lb / 1.2 kg (excluding AC adapter)
