Pioneer Euphonia 4 Channel Rotary DJ Mixer

Pioneer Euphonia 4 Channel Rotary DJ Mixer

Pioneer Euphonia 4 Channel Rotary DJ Mixer – Spesifikasi Lengkap

Jenis & Konsep

• Tipe: 4-channel professional rotary DJ mixer
• Kategori: High-end hybrid (digital processing + analog transformer sound shaping)
• Desain: Rotary mixer generasi baru (boutique + modern digital workflow)

Kualitas Audio & Processing

• A/D & D/A Converter: 32-bit high precision
• DSP processing: 96 kHz / 64-bit floating-point
• Frequency response: 20 Hz – 40 kHz (LINE)
• Signal-to-noise ratio (SNR):
  • USB / Digital In: 107 dB
  • Line: 105 dB
  • Phono: 88 dB
  • Mic: 79 dB

Channel & Layout

• Channel: 4 stereo channels
• Type fader: Rotary knob (bukan linear fader)
• Master isolator: 3-band (Low / Mid / High)
• Channel EQ / isolator feel: smooth + musical (tidak full kill ekstrem)

Analog Transformer (Ciri khas utama)

• Kolaborasi: Rupert Neve Designs
• Fungsi:
  • Menambah harmonic saturation
  • Bass lebih tebal & stabil
  • Mid lebih hadir & “vocal-like”
  • High lebih halus & tidak tajam

Effects (FX System)

Built-in FX:

• Delay
• Tape Echo
• Echo Verb
• Reverb
• Shimmer
• HPF (High-pass filter)

Send/Return:

• 2 Send
• 2 Return
• Support external FX unit (misalnya RMX-style effects)

Unique feature:

• Boost Send per band isolator
  → bisa kasih FX ke bass/mid/treble secara terpisah

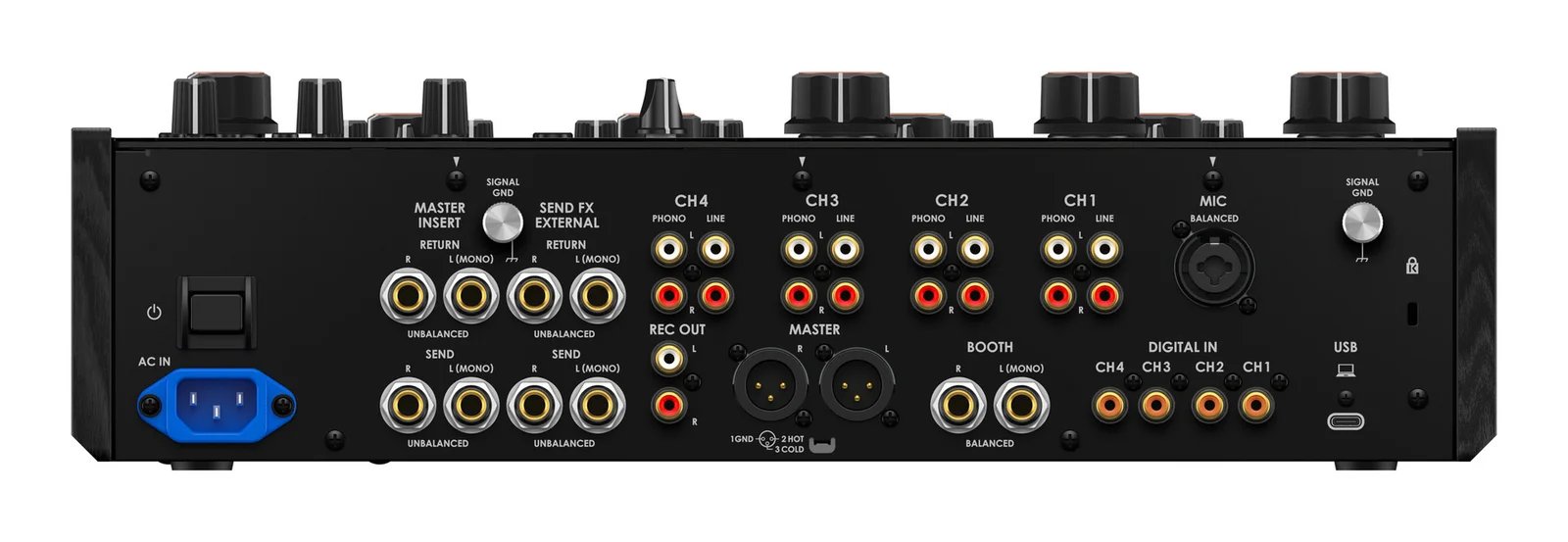

Input / Output

Inputs:

• 4× LINE (RCA)
• 4× PHONO (RCA)
• 4× DIGITAL IN (coaxial)
• 1× MIC (XLR / TRS combo)

Outputs:

• MASTER OUT: XLR
• BOOTH OUT: TRS 1/4”
• REC OUT: RCA
• PHONES: 6.3 mm + 3.5 mm

USB & Digital

• USB Type-C: 1 port
• Fungsi:
  • Audio interface
  • Rekordbox / Serato integration
• Software support:
  • rekordbox
  • Serato DJ Pro

Visual & Monitoring

• Energy Visualizer
  • Level tiap channel
  • Master spectrum analyzer
• Monitoring mix real-time (gain staging visual)

Kontrol & Feel

• Rotary knob dengan:
  • Elastomer grip (anti slip)
  • Weighted torque response (slow vs fast turning feel beda)
• Master isolator dengan respons sangat presisi
• Designed untuk mixing “musical”, bukan sekadar teknis

Power

• Power supply: AC 100–240V
• Consumption: ± 43W
