LD Systems Sub 10A 10 inch Active Installation Subwoofer
Rp8.250.000
Tersedia
Tersedia
Pengiriman
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
DHL Courier delivery
DHL courier will deliver to the specified address
1-3 Days
From $40
Warranty 1 year
Free 30-Day returns
Description

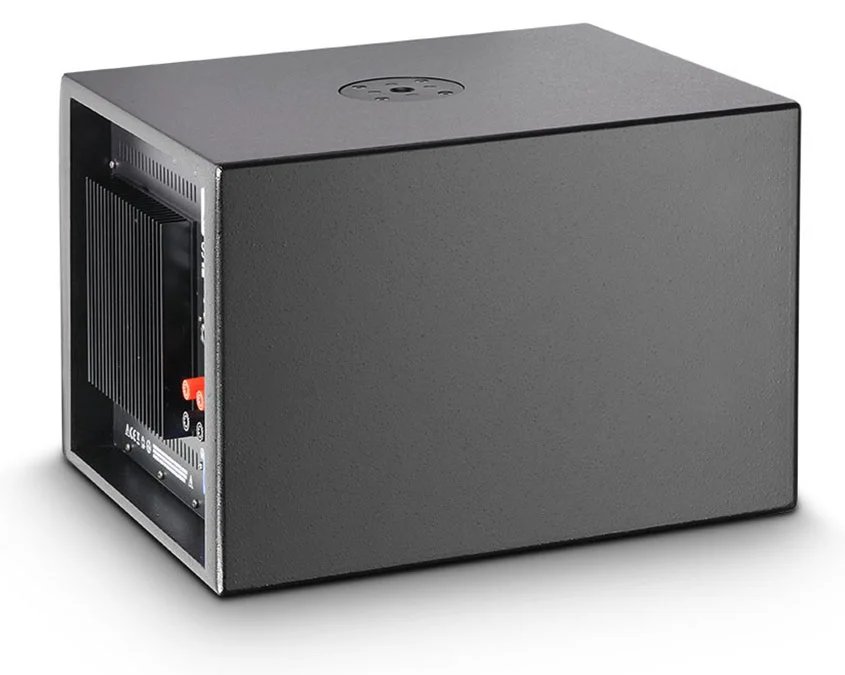

LD System Sub 10A – 10 inch Active Installation Subwoofer
The LDSUB10A is a very compact and powerful 10″ subwoofer and a genuine multitalent that can be used as an additional bass cabinet in conjunction with full-range speakers (Stinger 8″ or Stinger 10″) and is also suitable for permanent installations. This subwoofer features an integrated 3-channel power amplifier (3 x 120 W RMS), thus permitting connection of additional passive full-range speakers or installation speakers such as those in the LD SAT series.
Possible combinations for permanent installations:
- LDSUB10A 2 x 4 LDSAT42G2(W)
- LDSUB10A 2 x 4 LDSAT62G2(W)
- LDSUB10A 2 x 2 LDSAT242G2(W)
Specifications
General
- Product type Subwoofer
- Type Installation Subwoofer
- Low/mid Woofer dimensions 10 “
- Woofer dimensions (mm) 254 mm
- Woofer magnet Ferrite
- Woofer brand Custom-made
- Woofer voice coil 2 “
- Woofer voice coil (mm) 50.8 mm
- Amplifier Class A/B
- System Power (RMS) 360 (3 x 120) W
- Frequency response 40 – 120
- Max. SPL (continuous) 118 dB
- Protection circuits limiter, over voltage, short circuit
- Input sensitivity 0.3 V RMS V
- Controls mains switch (on/off), Subwoofer Phase Reverse, Subwoofer Volume, volume
- Indicators Power
- Line inputs 2
- Line input connectors 6.3 mm jack, XLR
- Line outputs 2 x direct output
- Line output connectors XLR
- Loudspeaker outputs 2
- Speaker output connections Terminal posts
- Operating voltage transformer
- Operating voltage 220 V AC – 240 V AC
- Cabinet material 15 mm MDF
- Cabinet surface texture paint
- Cabinet construction Bass Reflex
- Width 505 mm
- Height 345 mm
- Depth 425 mm
- Weight 21 kg
