FLAMMA FC18 Clean Booster Guitar Effect Pedal

The FC18 is an ultra-compact booster pedal with 20db+ clean pulse with 2-band equalizer of ± 15db, nice beautification of the original tone. A true high-quality bypass circuit amplifies your signal without degradation or alteration. Looking for that extra bit of oomph in your tone? The FC18 Clean Boost pedal offers up a 20db+ clean boost with a 2 band EQ that allows rich tonal enhancements in a compact package. The large gain knob lets you easily adjust your levels on the fly while the mini bass/treble EQ knobs allow for more fine tweaking of volume levels and tone color.

To tone things down, simply switch off the pedal and enjoy the true bypass feature.

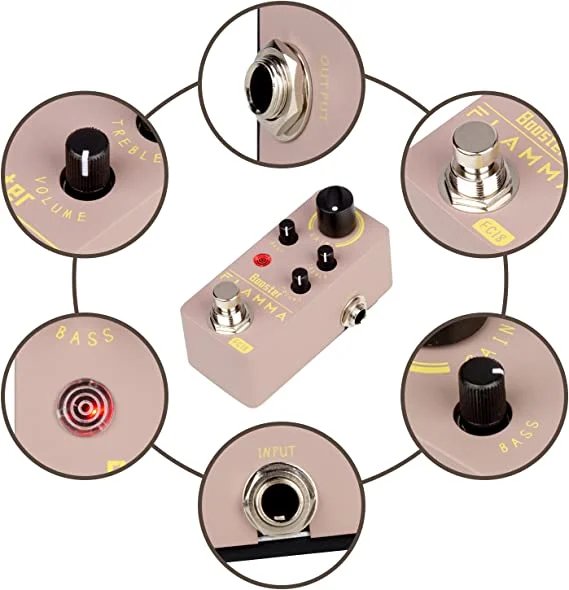

Design
1. Foot switch: Press to turn the pedal on or off.

2. Output: 1/4 inch mono audio jack.

3. LED indicator: Indicates the power on or off status of the pedal.

4. Low: Rotates to adjust the bass frequency.

5. Profit: Rotates to adjust the level of gain.

6. DC IN: To connect to the power supply.

7. Input: 1/4 inch mono audio jack.

8. TRETHER: Rotates to adjust the treble frequency.

9. Volume: Rotate to adjust the output volume level.

• Entrance: 1/4-inch mono audio jack (impedance value: 1M ohms)
• Exit: 1/4-inch mono audio jack (impedance value: 470 ohms)
• Power requirements: 9 V DC (negative center)
• Current drawing: 6 mA
• Dimensions: 93.5 x 42 x 52 mm
• Weight: 160g
• Accessories: Owner’s Manual
•

Effect Pedal for Guitar and Bass

• Analogue clean boost with up to +20dB
• Controls: Gain, Bass, Treble and Volume
• On/Off LED
• True bypass circuit
• Input: 6.3 mm jack
• Output: 6.3 mm jack
• Power supply via mains adapter (not included, suitable mains adapter: art. 409939)
• Power consumption: 9 V DC, 6 mA
• Robust metal housing
• Dimensions: 47 x 83 x 52 mm
