Charvel Pro-Mod DK22 SSS 2PT w/ Caramelized Maple FB

Charvel Pro-Mod DK22 SSS 2PT w/ Caramelized Maple FB

Spesifikasi Lengkap

Model: Charvel Pro-Mod DK22

Body

• Body Shape: Dinky (DK)
• Body Material: Alder
• Body Finish: Satin
• Construction: Bolt-On
• Contour:
  • Scalloped Lower Back Bout
  • Shredder’s Cut Heel
• Warna populer:
  • Electric Blue
  • Gloss Black
  • Pharaohs Gold

Neck

• Neck Material: Caramelized Maple
• Neck Construction: Bolt-On with Graphite Reinforcement
• Neck Finish: Hand-Rubbed Satin Urethane
• Neck Shape: Speed Neck with Rolled Fingerboard Edges
• Scale Length: 25.5″ (648 mm)
• Fingerboard Material: Caramelized Maple
• Fingerboard Radius:
  • 12″–16″ Compound Radius
• Number of Frets: 22
• Fret Size: Jumbo
• Nut Material: Graph Tech TUSQ XL
• Nut Width: 1.6875″ (42.86 mm)
• Inlays: 4mm Pearloid Dot
• Side Dots: Luminlay
• Truss Rod:
  • Heel-Mount Adjustment Wheel

Electronics

• Pickup Configuration: SSS
• Bridge Pickup:
  • Seymour Duncan Custom Hot Rails Strat SHR-1B Humbucker
• Middle Pickup:
  • Seymour Duncan Flat Strat SSL-6 Single-Coil
• Neck Pickup:
  • Seymour Duncan Flat Strat SSL-6 RWRP Single-Coil

Controls

• Volume:
  • 500K EVH Bourns Low Friction Pot
• Tone:
  • No-Load Tone Control
• Switching:
  • 5-Position Super Blade Switch

Pickup Switching

1. Full Bridge Humbucker
2. Bridge Inner Coil + Middle
3. Bridge Outer Coil + Neck
4. Middle + Neck
5. Full Neck Pickup

Hardware

• Bridge:
  • Gotoh Custom 510 2-Point Tremolo
• Hardware Finish:
  • Chrome / Gold (tergantung warna)

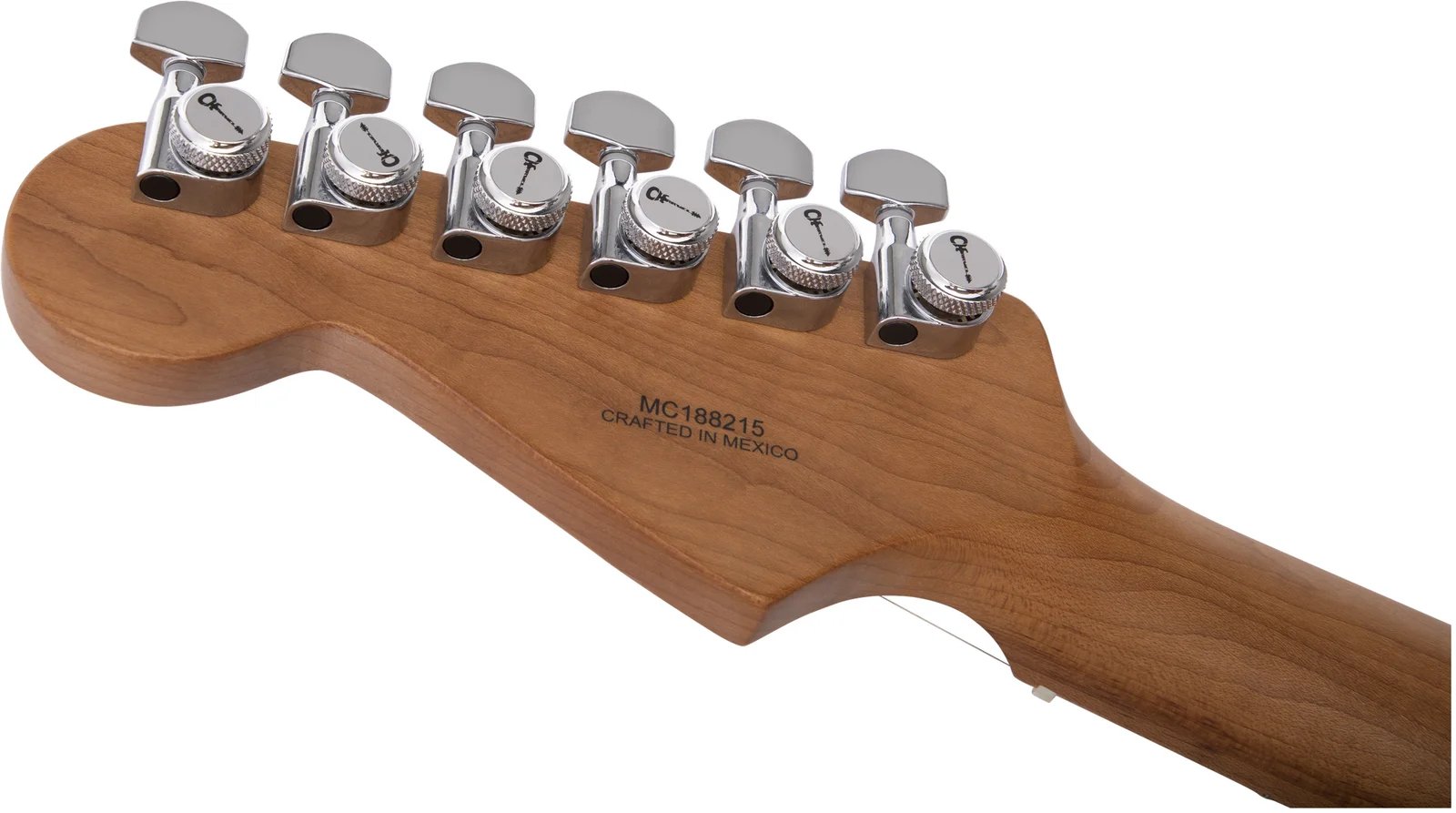

• Tuners:
  • Charvel Die-Cast Locking Tuners
• Pickguard:
  • None
• Knobs:
  • Strat Style Skirt Knobs

String & Setup

• Factory Strings:
  • Nickel Plated Steel .009–.042
• String Trees:
  • Fender Standard String Guide
