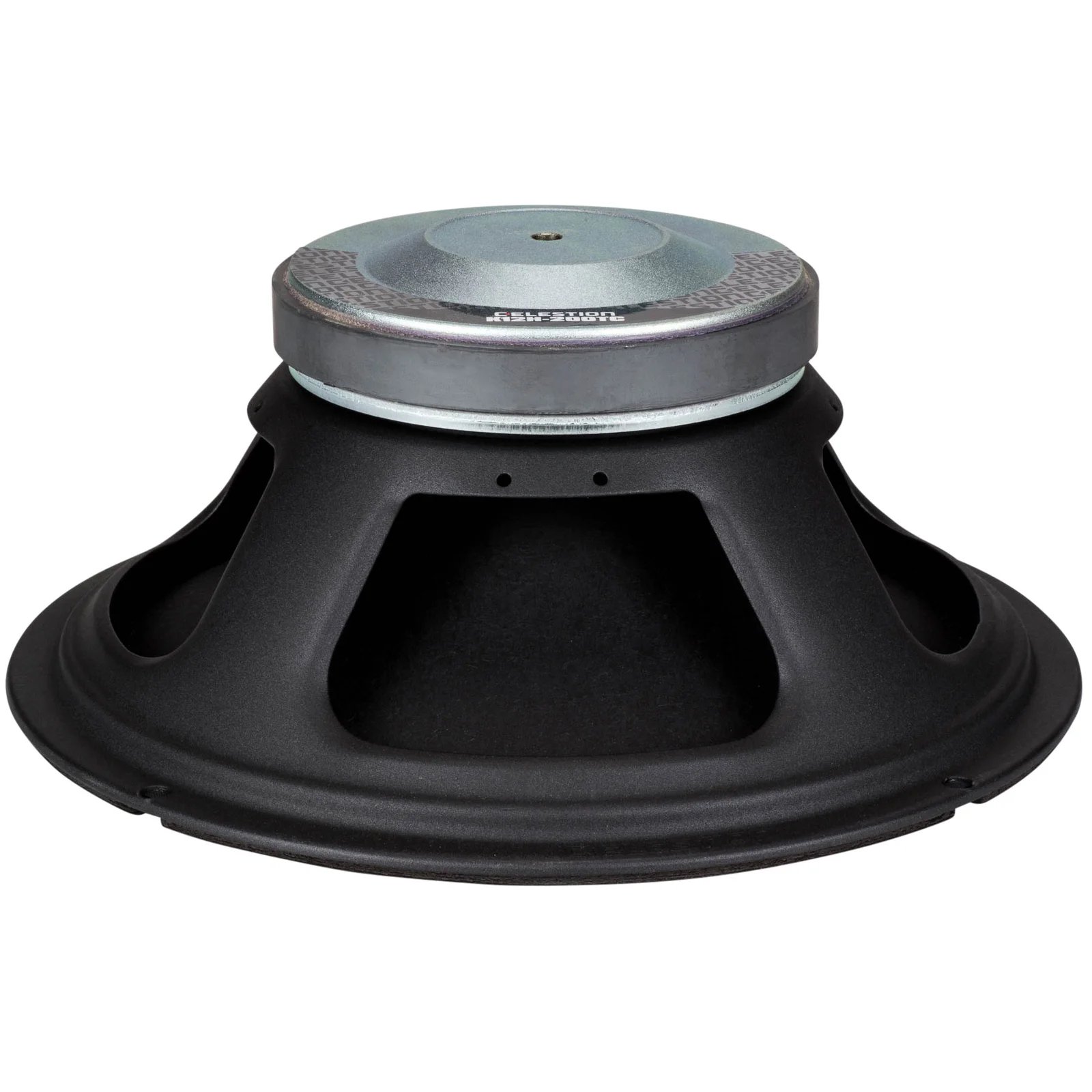

Celestion K12H-200TC 12″ 200 Watt Full-Range Professional Woofer Driver 8 Ohm
Rp885.000
Tersedia
Tersedia
Pengiriman
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
DHL Courier delivery
DHL courier will deliver to the specified address
1-3 Days
From $40
Warranty 1 year
Free 30-Day returns
Description
Celestion’s K12H-200TC 8 ohm 12″ full range driver is an excellent choice when space is at an absolute minimum. This driver uses a dual cone, or whizzer cone, design improving the high frequency response well beyond that of a standard 12″, eliminating the need for a tweeter and crossover. The primary cone handles low to midrange frequencies while the smaller secondary cone reproduces the higher frequencies. A pressure formed cloth dust cap reinforces the secondary cone for enhanced mid-band clarity.
Specs
- Nominal Diameter……………………………………..12″
- Power Handling (RMS)……………………………200 Watts
- Power Handling (max)…………………………….400 Watts
- Impedance……………………………………………8 ohms
- Frequency Response………………………………50 to 10,000 Hz
- Sensitivity……………………………………………..98 dB 1W/1m
- Voice Coil Diameter…………………………………2″
- Magnet Weight……………………………………….50 oz.
- Product Dimensions…………………………………13.39 x 6.3 x 12.99 inches;
- Weight…………………………………………………..4.440669 Kgs
Mounting Information
- Overall Outside Diameter…………………………………12.2″
- Baffle Cutout Diameter…………………………………….11.14″
- Depth…………………………………………………………..5.14″
- Bolt Circle Diameter………………………………………..11.75″
- # Mounting Holes……………………………………………4
Materials of Construction
- Cone Material……………………………………….Paper / KevlarSurround
- Material…..……………………………………….….Cloth
- Voice Coil Wire Material…..……………………..Copper
- Voice Coil Former…..……………………………..Kapton® / Polyimide
- Basket / Frame Material…..……………………..Steel
- Magnet Material…..………………………………..Ferrite
