Allen & Heath Qu 7D Digital Mixer with Dante

Supreme Portability Meets Advanced XCVI Processing

Blending the svelte form factor of the Qu-32 with the power of Allen & Heath’s advanced XCVI processing, the Qu-7D redefines what’s possible in a compact digital mixer. This cutting-edge, 38-in/24-out, 96kHz console delivers exceptional performance with six studio-grade Multi-FX engines, each with dedicated returns, and versatile Everything I/O connectivity. At the heart of the Qu-7D is a vibrant 7-inch capacitive touchscreen, enhanced by vivid channel strip displays, four user-definable layers, and eight programmable SoftKeys, offering intuitive control at your fingertips. Additionally, this mixer houses 32 premium digitally controlled mic preamps, engineered for pristine transparency, ultra-low noise, and musical warmth that elevates any live mix. Hands-on control abounds, thanks to 33 smooth 100mm motorized faders and a thoughtfully designed interface.

Flagship processing, now in a compact Qu mixer
The Qu-7D combines the compact portability of the best-selling Qu-32 with the powerful 96kHz FPGA processing of Allen & Heath’s acclaimed XCVI Core, the same engine that drives the company’s flagship SQ and dLive series. This advanced digital mixer features six cutting-edge Multi-FX engines, each with dedicated return channels, and offers full Everything I/O connectivity for maximum flexibility and expandability. Enhancing its intuitive workflow, the Qu-7D is equipped with a large 7-inch capacitive touchscreen, vivid channel strip displays, customizable layers, and eight programmable SoftKeys, delivering a seamless, hands-on mixing experience in a space-saving design.

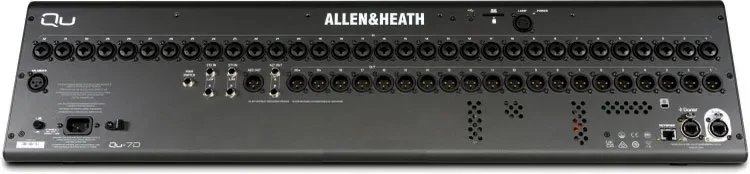

All the I/O you need — right where you need it
Designed for maximum flexibility, the Allen & Heath Qu-7D boasts a highly versatile I/O configuration with 36 mix inputs, including 32 mono channels — linkable for stereo operation — and two dedicated stereo channels. Its output architecture features a stereo main LR bus, 12 mix outputs (comprising six mono or linkable auxes and six stereo aux/group mixes), and four matrix outputs that can also be configured as stereo pairs. For physical connectivity, the Qu-7D includes 32 XLR mic/line combo jacks, two stereo line input pairs (each with dual TRS connectors), and a dedicated talkback input. On the output side, it offers 20 XLR outputs, two TRS outputs, and a stereo AES3 digital output, ensuring seamless integration into both live sound and studio production environments.

Multitrack recording made effortless
Recording with the Qu-7D is refreshingly straightforward. It features a 32-in/32-out USB-C audio interface, allowing seamless integration with your DAW for multitrack recording and playback. For standalone operation, the built-in SD card slot supports 32-channel recording and playback at up to 48kHz and supports 16 channels at 96kHz, eliminating the need for a computer. Additionally, a USB-A port enables stereo recording, playback, and data transfer. Finally, for networked audio environments, the Qu-7D includes a 16-in/16-out Dante interface, supporting sample rates up to 96kHz, ensuring effortless compatibility with AoIP-based recording setups.

Qu-7D Features:
Next-gen, 38-in/24-out, 96kHz digital mixer blending the Qu-32’s svelte form factor with advanced XCVI processing
6 Multi-FX engines, each with dedicated returns, lend a studio-quality sheen to your mixes
Versatile Everything I/O connectivity ensures maximum flexibility and expandability
Vibrant 7-in. capacitive touchscreen offers easy access to channel strips, FX, and more
Vivid channel strip displays, 4 user-definable layers, and 8 programmable SoftKeys put intuitive control at your fingertips
36 mix inputs, including 32 mono channels — linkable for stereo operation — and 2 dedicated stereo channels
32 premium digitally controlled mic preamps, engineered for pristine transparency, ultra-low noise, and musical warmth
33 smooth 100mm motorized faders and a thoughtfully designed interface provide intuitive hands-on control
USB-C audio interface and SD card slot provide you with up to 32 channels of recording and playback
16-in/16-out Dante interface gives you seamless integration into AoIP networks
Built to handle the demands of modern live sound production

• Type: Digital Mixer
• Channels: 38
• Inputs – Mic Preamps: 32 x XLR (mic/line)
• Mic Inputs: 32
• Phantom Power: 32 Channels
• Inputs – Other: 4 x 1/4″ (2 Stereo In)
• Outputs – Main: 2 x XLR (left, right)
• Outputs – Direct: 18 x XLR
• Outputs – Other: 2 x 1/4″ (alt)
• Outputs – Digital: 1 x XLR (AES/EBU)
• Talkback: 1 x XLR
• Data I/O: 1 x EtherCon (SLink), 1 x EtherCon (Dante), 1 x RJ45
• Headphones: 1 x 1/4″
• USB: 1 x USB-A, 1 x USB-C
• Computer Connectivity: USB-C (32×32)
• Remote: 1 x Footswitch
• Faders: 33 x 100m Motorized Faders
• A/D Resolution: 96kHz
• EQ Bands: 4-band parametric
• Features: 96kHz FPGA Core
• Screen: 7″ Capacitive Touchscreen
• Storage: SD card slot
• Software: Remote control via free apps – Windows/MacOS/iOS/Android
• Power Source: IEC Main Connection w/Worldwide PSU
• Height: 8.3″
• Depth: 18.7″
• Width: 31.5″
• Weight: 36.8 lbs.
• Manufacturer Part Number: AH-QU-7D
