Zoom R4 MultiTrak Portable Recorder with AD-17E

The Little Recorder For Big Ideas

The R4 MultiTrak is the world’s first portable compact studio which is supported by 32-bit Float audio recording technology. Built around Zoom’s popular handheld design, the R4 provides musicians and songwriters with a new mobile device designed for studio needs, such as layering music tracks, whether recording a demo or designing a song, with pro-audio quality and the greatest benefit of clip-free recordings. With 4 tracks, a unique dedicated ‘bounce track’, 2 XLR/TS combo inputs, built-in microphone, a rhythm section with over 80 drum patterns and a variety of track effects and input effects including amp simulations, the R4 is perfect for capturing your most ambitious compositions.

Designed By Musicians
All of our engineers are musicians and they designed the R4 to empower musicians to explore big ideas. With a unique dedicated ‘bounce track’ and 32-bit float recording, the R4 is perfect for capturing your most ambitious compositions.  With the R4, you can record up to four tracks, mix and then bounce them to the dedicated ‘bounce track.’ This lets you free up additional tracks to keep adding layers.  You can choose to do a ‘quick’ bounce or mix and bounce in real time. The R4 also allows you to ‘undo’ your last bounce, if you’re not satisfied with the results.

Features

• Float Recording – No need to worry about setting gain for your recordings, as the R4 captures perfect audio with each take.
• Effects – Each track features a 3-band EQ, pan, echo, and reverb to refine your mix. Apply effects to input A such as amp simulations, delays, distortions and more.
• Drum Patterns – The R4 has a rhythm section preloaded with over 80 different drum patterns to play along with featuring genres such as rock, hip hop, funk, heavy metal, and more.
•

Specifications

1. 4 Tracks of Recording + Bounce Track for adding unlimited tracks
2. Dual AD circuitry with 32-bit float audio recording technology (never clip)

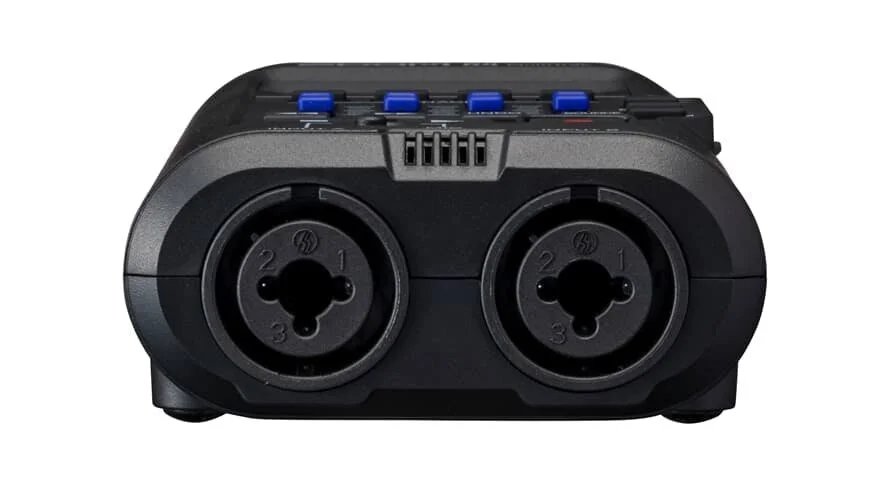

3. 2-INPUT (Combo Jacks with Phantom Power) for microphones, guitars, keyboards
4. 3,5mm stereo jack headphone out for monitoring
5. 4 Faders for Volume Control of each Track
6. Built-in Omni MIC for high-quality ambient recording
7. 2-inch Colour LCD for easy UI navigation
8. EFFECT section including EQ, Reverb, Delay, and Guitar effects.
9. RHYTHM section with drums patterns
10. USB Audio Interface Function with 32-bit float audio
11. ¼”-thread for mounting on tripods and other accessories.
12. Supports up to 1TB microSD cards.
13. Runs on 4 AA Batteries
14. AD-17E Power Adapter
