Yamaha STAGEPAS 1K MKII 1.100 watt 5 Channel Portable Column PA System

A Portable PA with Pro-level Sound

Need a complete sound system with pro-level sound and dead-simple setup? The Yamaha StagePas 1K mkII checks both those boxes. Rated at 1,100 watts, this portable column PA system features a 12-inch subwoofer for rafter-shaking bass, plus a 10-speaker line array with impressively wide dispersion. It includes a bevy of state-of-the-art features, including a built-in 5-channel mixer, 1-knob EQs, high-quality SPX reverb, and Bluetooth functionality. Need a high-performance stereo system? No problem. Add a DXL1K powered column PA speaker, and you’ll be ready to go. You also get a rugged yet lightweight enclosure. Anyone in need of a top-quality all-in-one PA will find everything they’re looking for in the Yamaha StagePas 1K mkII.

1,100 watts of rafter-shaking power
The Yamaha StagePas 1K mkII boasts a line array of 10 small-diameter 1.5-inch speakers, along with an earth-shaking 12-inch subwoofer — driven by a 1,100-watt Class D power amplifier. Your entire audience will experience excellent sound quality, thanks to the S StagePas 1K mkII’s impressive 170° horizontal and 30° vertical coverage area. You’ll love this portable column PA system’s consistent performance. Every corner of your venue will enjoy uniform, high-quality sound.

Lots of features in a portable package

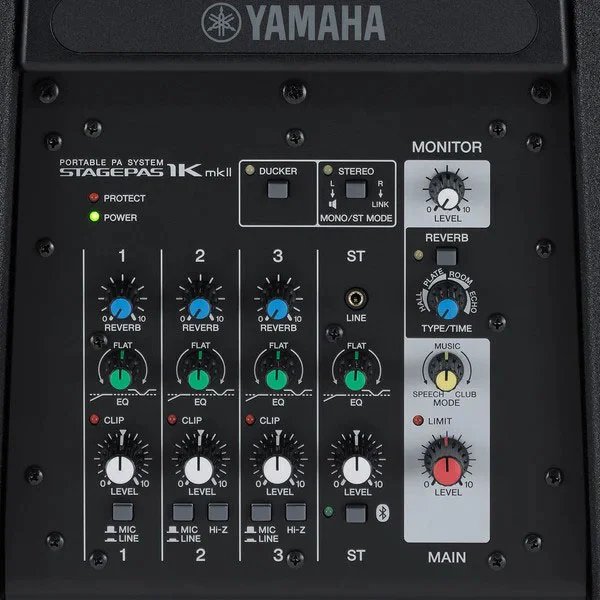

We’are duly impressed by the number of features Yamaha packed into the StagePas 1K mkII. For starters, it includes a flexible built-in 5-channel digital mixer. Each input boasts an easy-to-use 1-knob EQ for easy sound shaping. You also get a high-quality reverb derived from Yamaha’s iconic SPX-series digital multi-effects units. Best of all, all adjustments are performed with a single knob, which makes getting a great mix fast and easy — no complex menu diving required.

Features:

1. Built-in 5-channel digital mixer accommodates your mics and instruments
2. Bluetooth connectivity enables you to stream stereo audio from your smart device
3. 1,100W Class D power amplifier delivers impressive, high-SPL (125dB) performance
4. 10-speaker line array delivers 170° horizontal and 30° vertical coverage
5. 12-inch subwoofer yields earth-shaking low end down to 37Hz
6. 1-knob EQ enables tonal adjustments with a quick twist of your wrist
7. High-resolution SPX digital reverb adds a pro-level sheen to your performance
8. Bluetooth Control Editor remote application allows you to tweak your settings from anywhere
9. Pairs with Yamaha’s DXL1K powered column PA speaker for stereo operation
10. Comes with a transport cover
11.

• Type: Portable PA System
• Speaker Drivers: 1 x 12″ LF, 10 x 1.5″ HF
• Number of Mixer Channels: 5
• EQ: 1-Knob EQ on Inputs
• Effects: Reverb
• Inputs: 3 x XLR-1/4″ combo, 1 x XLR (link), 2 x 1/4″ TS (L/Mono, R), 1 x 1/8″ TRS
• Outputs: 2 x XLR (link, monitor)
• Bluetooth: v5.0
• Other I/O: 1 x 1/4″ (footswitch)
• Total Power: 1100W, Class D
• Frequency Response: 37Hz-20khz (-10db)
• Maximum Peak SPL: 119dB SPL
• Horizontal Coverage Angle: 170°
• Vertical Coverage Angle: 30°
• Mounting Options: Floor
• Power Source: AC Power Cable
• Height: 78.74″
• Width: 13.14″
• Depth: 16.45″
• Weight: 50.7 lbs / 22.569kgs
• Manufacturer Part Number: STAGEPAS 1K MKII
