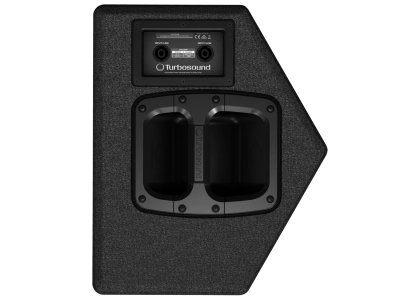

Turbosound TPX122M – 12″ Performer Series Full Range Loudspeaker

The 2-way full range TPX122M is a passive 12″ 1000W loudspeaker system that is ideally suited for a wide range of portable speech and music sound reinforcement, including FOH, side fill and monitor applications. Engineered as a standalone 2-way system not requiring any external equalization or filtering, the TPX122M achieves optimal performance when paired with a subwoofer and TURBOSOUND loudspeaker management systems.



The TPX122M loudspeaker features a high excursion 12″ low frequency driver with a low mass voice coil for improved transient response, and an aluminum dome 1″ compression driver mounted on a 70° horizontal by 50° vertical low distortion waveguide. All drivers are matched with an internal passive crossover network in a reflex-loaded enclosure.



Covered in rugged black carpet, the cabinet features 18 mm (¾ “) wood construction and includes a tough, powder-coated perforated steel mesh grille backed with reticulated foam, a dual-angle pole mount socket for use with 35 mm poles/speaker stands to optimize audience coverage, and durable handles for easy transport. The symmetrical wedge angle and high frequency dispersion pattern enable the TPX122M to be utilized as mirrored left/right floor monitors. A side panel connector plate carries Neutrik speakON* NL4 connectors for input and link connections to additional enclosures.



2 way full range loudspeaker and stage monitor for portable PA applications

250 Watts continuous, 1,000 Watts peak power

High excursion 12″ low frequency driver with low mass voice coil for improved transient response

Aluminium dome 1″ compression driver with extended high frequency reproduction

Low profile design to maximise audience sight lines

Low distortion waveguide provides 70° H x 50° V dispersion

Hard wearing carpet covered 18mm (3/4″) wood construction

Rugged powder coated perforated steel mesh grille

Durable handles for easy lifting and carrying

Dual angle pole mount for accurate audience coverage

Neutrik speakON* NL4 connectors for reliable long life operation

Speaker configuration

• Active/passive: Passive
• Type: Full-range
• LF driver: 12″
• MF driver: Not applicable
• HF driver: 1″ Titanium dome

Power capacity

• 8 Ohms program/peak: 250W Cont/1000W Peak
• 4 Ohms program/peak:

Audio

• Frequency response: 75Hz – 20kHz
• Coverage pattern: 70 x 50
• Max SPL: 127 dB

Inputs

• TRS: Not applicable
• TS: Not applicable
• RCA: Not applicable
• SPEAKON: 1

Output/thru

• TRS: Not applicable
• TS: Not applicable
• RCA: Not applicable
• SPEAKON: 1

Enclosure

• Cabinet material: 18 mm particle board
• Width: 16.7″
• Height: 23″
• Depth: 13″
• Weight: 41.7 lb.
