Tascam US-2×2-HR High-Resolution USB Audio Interface

US-2x2HR
High-Resolution USB Audio/MIDI Interface (2 in, 2 out)

All-rounder for the demanding
The US-2x2HR is a member of the Tascam US-HR series of high-resolution USB audio interfaces. It provides two mic/line/instrument switchable inputs and two balanced line outputs as well as MIDI I/O to your Windows or Mac computer or your iPhone or iPad. This interface is ideal for music creation and home recording with high demands on simple operation and studio-quality sound. The included loopback function and support for Open Broadcaster Software (OBS Studio), however, makes it also an excellent choice for podcast creation and live streaming.

Lower noise and distortion – better sound than ever
The compact US-2x2HR incorporates a wealth of features, including high audio resolution up to 24-bit/192 kHz, ultra-low latency with a Windows buffer size starting at four samples, Ultra-HDDA mic preamplifiers with 48-volt phantom power for superior sound quality with ultra-low noise, a robust USB Type C connector, and a rich assortment of included software to start producing audio right away. This interface can also be used for mobile production or live streaming using your iPhone or iPad* with the included Cubasis LE. Simply put, the US-2x2HR helps you create and distribute great-sounding audio wherever you go.

Usability is key
All US-HR models offer a unique dye-cast aluminum honeycomb structure on the side panels with a slight upward tilt. This design not only results in a sleek, eye-catching design, it also provides just the right amount of weight so the interface won’t move when cables are connected or disconnected. Equally important, the upward tilt offers the ergonomic benefit of being angled in such a way as to make the interface easy to work with.

If you’re a musician, producer or home-recordist who needs a solid, uncluttered, easy-to-use audio interface with superb sound quality, the Tascam US-2x2HR can be your reliable partner for many years.

* An optional battery pack or AC adapter is required when used with an iPhone or iPad.

Features

• Advanced version of our popular US-2×2 with even better sound quality
• Provides two audio inputs and two audio outputs as well as a MIDI interface to a Windows or Mac computer or iOS device
• Audio resolution up to 192 kHz / 24 bit
• USB Audio Compliance 2.0 for iOS connection

Hardware features

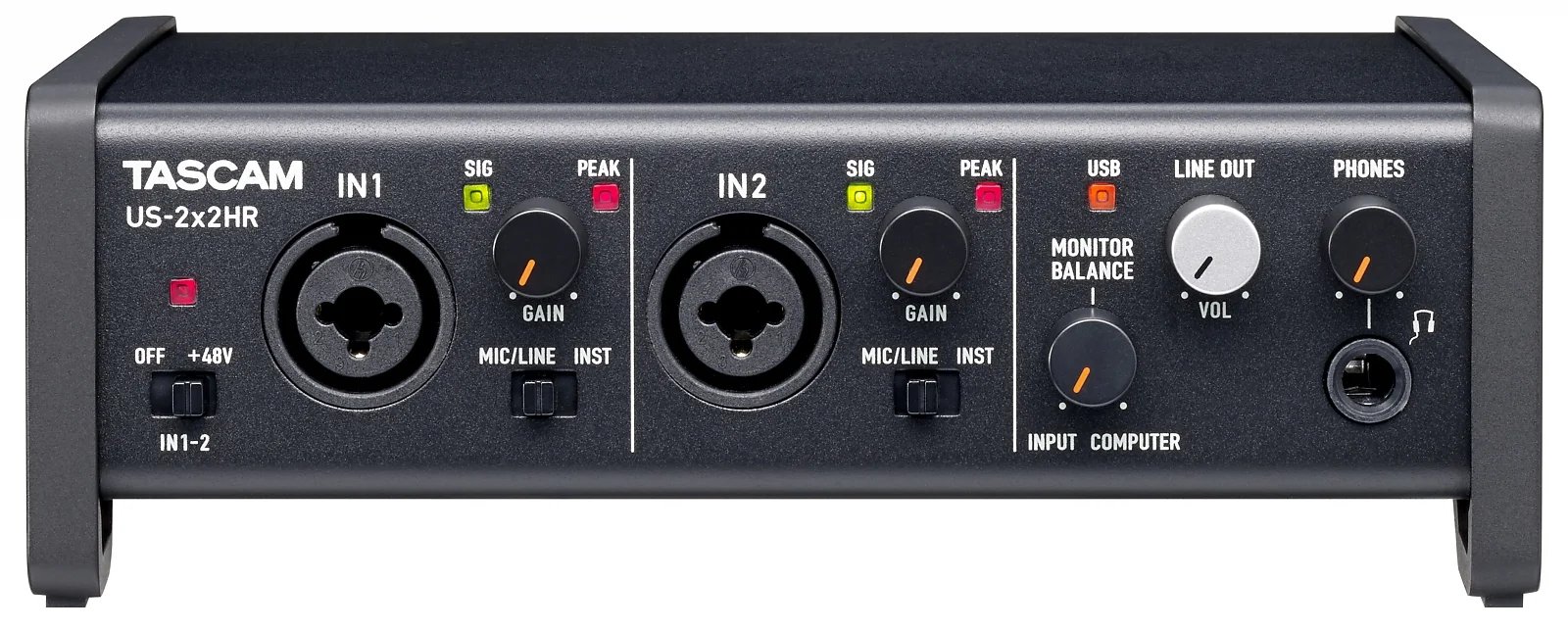

• Two analogue mic/line inputs on XLR/TRS balanced combo connectors
• High-quality Ultra-HDDA (High Definition Discrete Architecture) microphone pre-amps with ultra-low noise (EIN: –128 dBu)
• Wide input gain range of 56 dB, ideal for dynamic microphones
• Switchable 48-Volt phantom power on XLR inputs
• TRS inputs 1/2 can each be switched to instrument-level for direct recording of guitar or bass

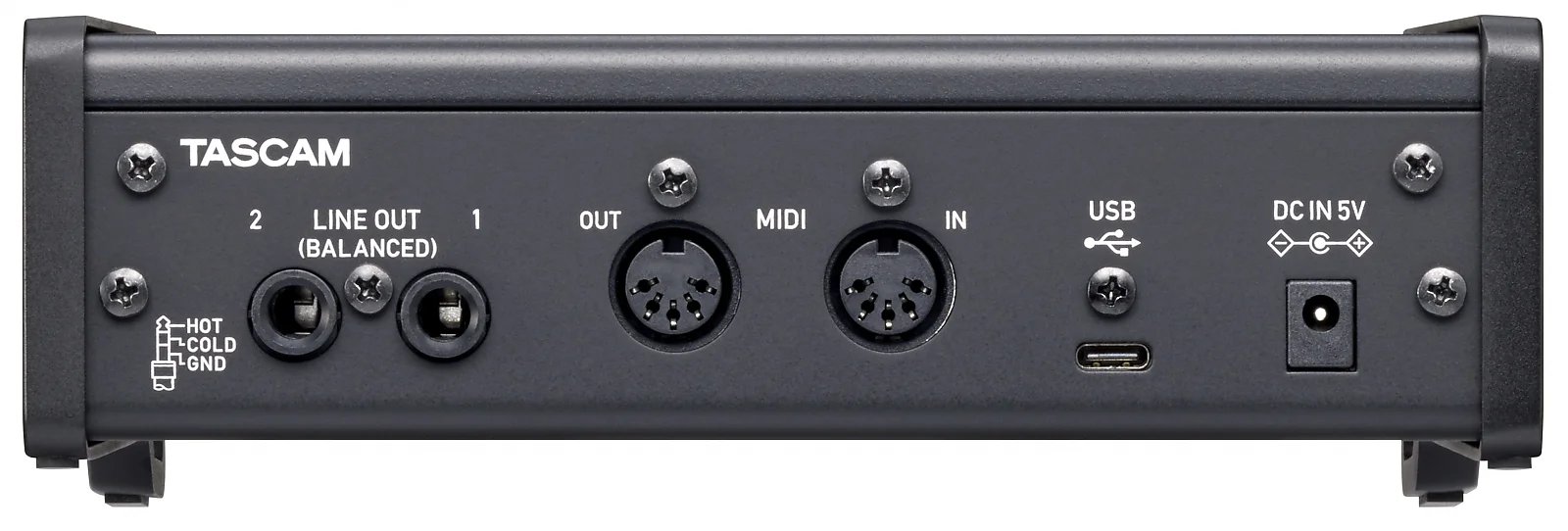

• Two line outputs (balanced TRS)
• Direct monitor option for low-latency monitoring
• Monitor mix control for adjusting the level balance between signals from external devices and signals from the computer
• Headphones output delivering 18 mW per channel
• Independent level controls for line and phones outputs
• MIDI input/output
• USB bus-powered for mobile recording

Software features

• In-house developed driver for Windows devices ensures stable operation with low latency
• The buffer size for Windows can be selected up from 4 samples to facilitate a recording environment with ultra-low latency
• Each input can be switched on/off individually
• Input monitor mode can be selected between stereo and mono
• You can select which signals are output at the line outputs

Specifications

• Audio resolution

Sampling frequencies
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Quantization bit depth
24-bit

Analogue inputs
Mic inputs (balanced)
XLR-3-31 equivalent
(1: GND, 2: HOT, 3: COLD)

Input impedance
2.2 kΩ

Rated input level
–7 dBu (0.346 Vrms)

Maximum input level
+9 dBu (2.183 Vrms)

Gain range
56 dB

Instrument inputs (unbalanced, MIC/LINE INST switch set to INST)
6.3-mm standard TS stereo jacks
(Tip: HOT, Sleeve: GND)

Input impedance
≥1 MΩ

Rated input level
–6 dBV (0.501 Vrms)

Maximum input level
+10 dBV (3.162 Vrms)

Gain range
56 dB

Line inputs (balanced, MIC/LINE INST switch set to MIC/LINE)
6.3-mm standard TRS stereo jack
(Tip: HOT, Ring: COLD, Sleeve: GND)

Input impedance
10 kΩ

Rated input level
+4 dBu (1.228 Vrms)

Maximum input level
+20 dBu (7.75 Vrms)

Gain range
56 dB

• Analogue outputs

Line outputs (balanced)
6.3-mm standard TRS stereo jacks
(Tip: HOT, Ring: COLD, Sleeve: GND)

Output impedance
210 Ω

Rated output level
+4 dBu (1.228 Vrms)

Maximum output level
+20 dBu (7.746 Vrms)

Headphone output (PHONES)
6.3-mm standard stereo jack

Maximum output power
18 mW + 18 mW or higher (THD+N 0.1% or less, into 32 Ω load)

• Computer system requirements

Windows

Computer hardware requirements
Windows computer with a USB 2.0 port

CPU/processor speed
2 GHz or faster dual core processor (x86)

Memory
2 GB or more
Important: Operation of this unit was confirmed using standard computers that meet the above requirements. This does not guarantee operation with all computers that meet the above requirements. Even computers that meet the same system requirements might have processing capabilities that differ according to their settings and other operating conditions

Supported audio drivers
ASIO2.0, WDM, MIDI, macOS

CPU/processor speed
2 GHz or faster dual core processor Memory
2 GB or more

Supported audio drivers
Core Audio, Core MIDI
iOS

Supported audio drivers
Core Audio
Important: To connect an iOS device that has a Lightning connector, a genuine Apple Lightning to USB Camera Adapter (sold separately) is necessary.

• Power supply and other specifications

Power supply

When used with a computer
USB bus power or dedicated AC adapter below

When used with an iOS device
Dedicated AC adapter (Tascam PS-P520E, DC 5 V)

Power consumption
1.75 W

External dimensions (W × H × D, including protrusions)
186 mm × 65 mm × 160 mm

Weight
1.1 kg

Operating temperature range
5–35 °C
