Tascam US-20×20 USB Celesonic 3.0 Audio Interface

Tascam US-20×20 USB Celesonic 3.0 Audio Interface

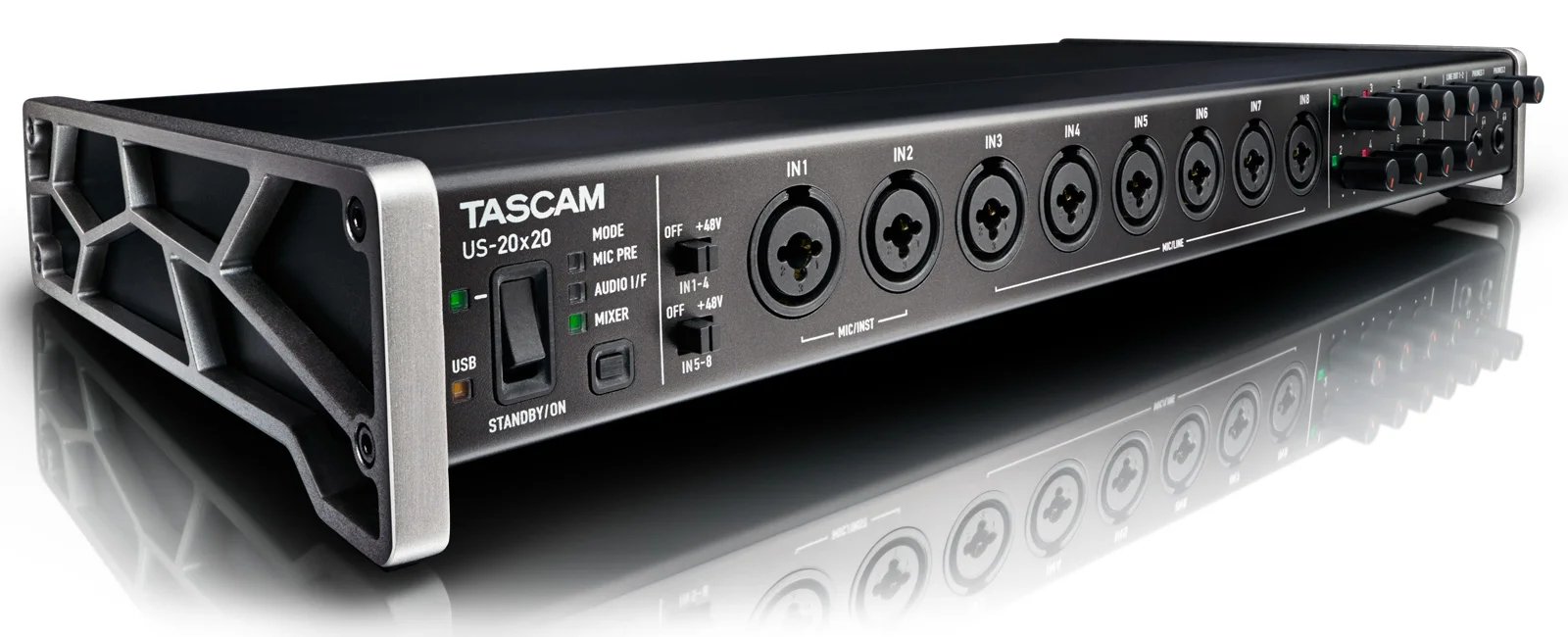

The Tascam US 20×20 is the flagship of the Tascam Line of interfaces. With HDDA (High Definition Discrete Architecture) pre-amps, the US-20×20 can produce pristine audio, and with 20 inputs and 20 outputs has incredible versatility, combing to create a fantastic tool for the studio.The Tascam US 20×20 was designed for use in professional studios, with three switchable settings from mic preamp, mixer and Interface. The Tascam US 20×20 also suports iOS , as well as DAW capabilities. Complete connectivity to various types of audio equipment is achieved by utilizing the analogue inputs and outputs, digital input and output via coaxial and optical connectors, MIDI, and word clock BNC connectors. Easy to use, versatile and durable, the Tascam US 20×20 is an excellent interface.

• 20 Inputs and 20 Outputs To Handle the Biggest Sessions

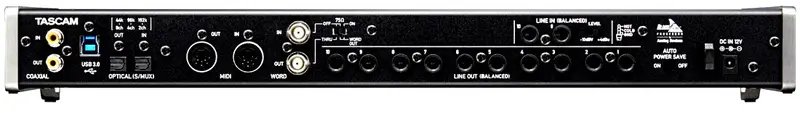

With (8) XLR/TRS inputs, (2) TRS inputs, multi-channel digital inputs via S/PDIF coaxial, and optical digital connectors, the US-20×20 provides a total of twenty simultaneous inputs  when operating at 44.1kHz or 48kHz. Twenty simultaneous outputs are also transmitted from your DAW  at 44.1kHz or 48kHz utilizing the (10) TRS line outputs, S/PDIF coaxial and optical digital outputs. The ADAT optical input/output support SMUX2 and SMUX4 – required for high sampling rates. Using (2) US-20×20 and the optical digital connections, it is possible to configure a (16) microphone recording system.

[Note] When operating at 88.2kHz or 96Khz, up to (16) inputs and (16) outputs are possible.
[Note] When operating at 176.4kHz or 192Khz, up to (12) inputs and (12) outputs are possible.

• Eight Ultra-HDDA Mic Preamps with 20dB of Headroom

Ultra-HDDA (High Definition Discrete Architecture) mic preamps, an original Tascam design, use discrete construction for superior audio quality. Tascam has achieved an EIN rating of -125 dBu (EIN is a value measurement of the absence of noise). The preamps have over 20dB of headroom, well above competing interfaces. This headroom is especially helpful on high SPL sources like drums and guitars.

• 8 XLR/TRS Inputs and 2 TRS Inputs

The 8 XLR/TRS mic inputs have switchable +48V phantom power in banks of 4, making it possible to use 8 condenser mics at the same time. The 2 balanced line inputs on the rear of the unit are switchable between -10dBV and +4dBu. The user is able to interface an instrument of any level – balanced or unbalanced.

• Direct Inputs for Guitar and Bass

Two instrument-level inputs are provided for direct input of guitar or bass. Make the most of guitar effect plug-ins, such as the TH2 effect that is included with Cakewalk SONAR.

• Mic Preamp Mode Enabling use as a Mic Pre with Analog and Digital Output

Mic Preamp Mode enables the use of the product as a standalone mic pre. In this mode, the XLR/TRS signal from the from panel flows through the Ultra-HDDA mic preamp, and is output through the TRS jack and the digital output on the rear panel. This is perfect for use into a mixer for live performances. It is not necessary to connect the interface to a personal computer via USB.

Features:

• Ultra-HDDA (High Definition Discrete Architecture) mic preamps with −125dBu EIN
• Eight Ultra-HDDA micpres with XLR/TRS and connector, two TRS inputs
• 3 mode switching of Interface/Mic preamp/Mixer
• Up to 192kHz/24-bit recording
• Support for Windows and Mac
• USB 3.0/2.0 computer connection (USB3.0 requires Windows 10)
• Connect with iPads and other iOS devices
• +48V phantom power for all inputs
• High-impedance inputs available
• Input level specifications boast a range of 56 dB for using dynamic mics
• Tough metal casing for durability

Specs:

• Interface Type USB
• Mic Preamps 8
• Audio Resolution 24-bit/192kHz
• Built-in DSP Yes
• MIDI I/O Yes
• Digital Input Type COAXIAL; OPTICAL; USB3.0/2.0 B type
• Digital Output Type RCA; OPTICAL (JEITA RC-5720C)
• Digital Outputs 20
• Analog Inputs IN 1-8
• Analog Outputs OUT 1-10
• Combo XLR/TRS Jacks 8
• S/PDIF I/O No
• ADAT I/O No
• Optical I/O Yes
• Ethernet Cat5 No
• Phantom Power Yes
• Bus Powered No
• Weight 5.95 lbs
• Dimensions 52″W ×2.32″H ×8.7″D
• Series Celesonic
• Model US-20×20
