Tascam UH-7000 High Resolution Interface and Stand Alone Mic

The UH-7000 is a pro-level microphone preamp and audio interface designed with a strong focus on low noise and high audio quality. Not only can this unit be used as a 4-in/4-out audio interface in a DAW production environment, but also as a standalone microphone preamp and A/D / D/A converter. The built-in HDIA (High Definition Instrumentation Architecture) microphone preamps perform at −128 dBu equivalent input noise, a signal-to-noise ratio of 117 dB and distortion of 0.0009 % or less.

The grand nature of the UH-7000’s sound is partially due to the careful attention spent on selecting parts. In addition to Burr-Brown converters and metal thin-film resistors, installed is a powerful TCXO clock generator with a precision of ±1 ppm.

The unit’s half-rack size makes it easy to install at a studio console or work desk. The thick aluminum panels used on the front and sides of the full-metal body help increase stability. Highly important but easily forgotten about are the smooth-tension aluminum input level knobs for precise level adjustments.

The UH-7000 microphone preamp and audio interface enables composers, musicians and recording engineers to produce music in their private quarters at a level generally reached only in professional studios.

Record confidently with the UH-7000
Dual-sided PCM4220 A/D converters capture your mic or line inputs at up to 192kHz/24-bit resolution. The temperature-compensated internal clock offers 1PPM resolution better than stand-alone clock generators that sell for twice the price, and limiting jitters for clean recordings. When monitoring and line output, the UH-7000 coerces your audio through a Burr Brown DA converter for fluid and honest sound reproduction.
Even the highest quality microphone preamps are of no use if they dont have a sufficient power source behind them. Another crucial component of the UH-7000 is its audiophile-designed power supply. An extra-large power transformer and other factors guarantee that all internal components work to their full potential. Most competing interfaces fall short in this category.

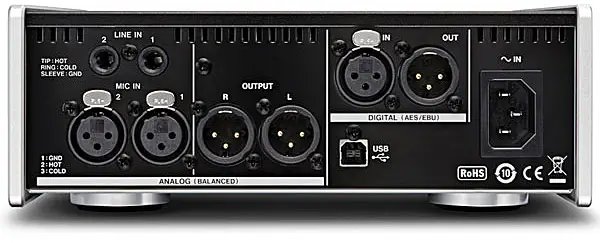

The unit itself is not only a figurative bridge between home and studio recording, but it is built like one too. With a solid aluminum structure, its easy to see that the UH-7000 means business. The knobs are meticulously calibrated for smooth, custom-tapered gain setting and the bright 20-segment LED peak meters accurately convey each channels true level. The device is equipped with (2) XLR balanced inputs with full +48V phantom power, (2) balanced 1/4 inputs, (2) balanced XLR outputs, and AES/EBU digital out. Work the fantastic preamps of the UH-7000 into your current recording/live setup, or plug this versatile interface into your computer and start recording.

Stop treading water between two worlds, and take the bridge to studio-quality recording with the UH-7000 USB Interface and Stand-Alone Microphone Preamplifier.
