Tascam TM-Drums Drum Microphone Kit

TM-DRUMS is a set of four microphones tailored for getting a good drum sound with ease using a Tascam multi-track recorder or audio interface with DAW software. Especially designed for beginners who cannot afford separate mics for each and every part of the drum kit, this mic set meets the minimum requirements for multi-microphone recordings and can even be handled by people who are not yet so familiar with creating a good sounding mix with many sources.

• Bass drum + snare drum + hi-hat + overhead

Set up the TM-50DB for the bass drum and the TM-50DS for the snare drum. One TM-50C microphone is used for the hi-hats, and the other is set above the drummer. Especially this hi-hat set up is essential for recordings. The microphones are connected to the audio interface US-16×08 and its phantom power supply can be connected to channels 1 and 2 (phantom power OFF), while two TM-50Cs are connected to channel 5 and 6 after the phantom power is switched ON for channel 5 to 8 only.

Features

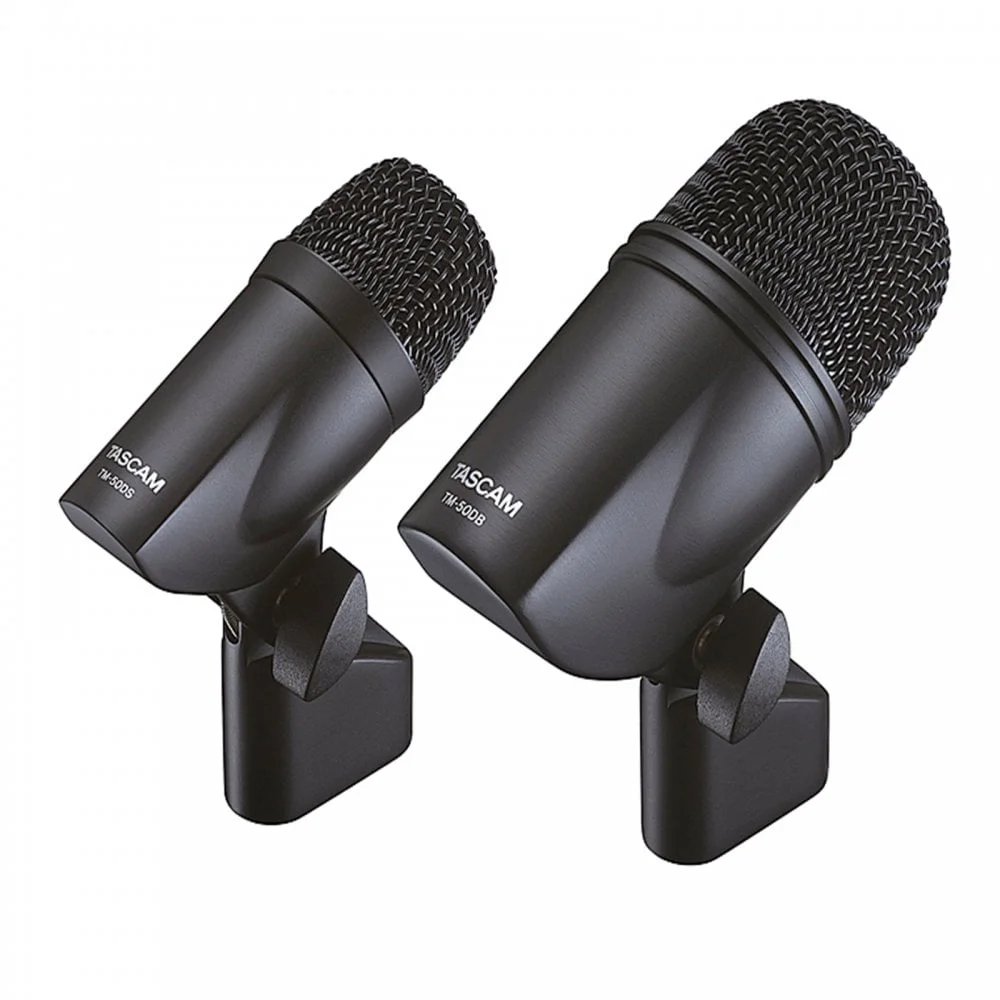

• TM-50DB Dynamic Mic Designed for the Bass or Kick Drum
• TM-50DS Dynamic Mic Designed for the Snare
• Two TM-50C Condenser Mics that can be Used for Hi-Hat, Toms and Cymbals

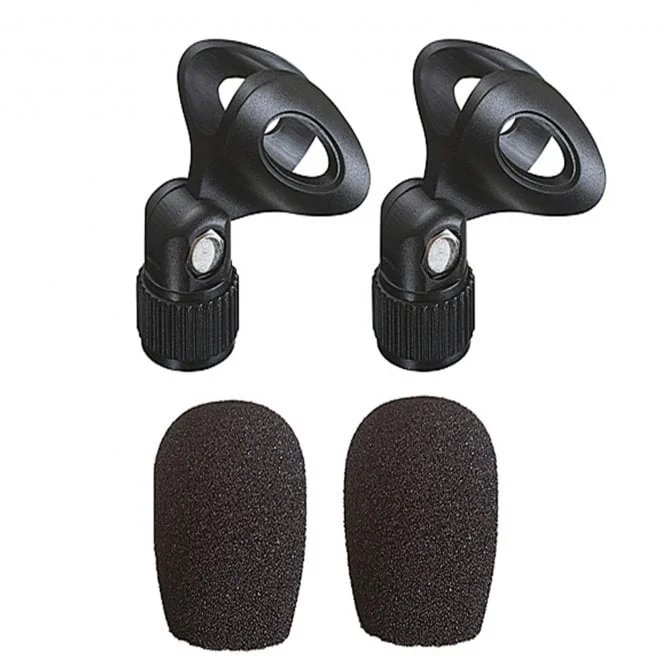

• Two Windshields,Microphone Holders are Included
• 5/8-inch to 3/8-inch Screw Adapter also Included

TM-50DB Specifications

• Bass drum microphone
• Working principle: dynamic
• Directivity pattern: unidirectional (cardioid)
• Frequency response: 50 Hz – 15 kHz
• Output impedance: 400 Ω, ±30 % (1 kHz)
• Load impedance:
• Sensitivity: –55 dB, ±3 dB (0 dB = 1 V/Pa at 1 kHz)
• Connector: 3-pin XLR, male
• External dimensions (H × W × D):
• 118 mm × 59 mm × 115 mm
• Weight: 460 g (mic body only)
• Included accessory: 5/8-inch to 3/8-inch screw adapter
•

TM-50DS Specifications

• Snare drum microphone
• Working principle: dynamic
• Directivity pattern: unidirectional (cardioid)
• Frequency response: 50 Hz – 14 kHz
• Output impedance: 350 Ω, ±30 % (1 kHz)
• Load impedance:
• Sensitivity: –56 dB, ±3 dB (0 dB = 1 V/Pa at 1 kHz)
• Connector: 3-pin XLR, male
• External dimensions (H × W × D):
• 105 mm × 43 mm × 98 mm
• Weight: 330 g (mic body only)
• Included accessory: 5/8-inch to 3/8-inch screw adapter
•

TM-50C Specifications

• Overhead/cymbals microphone
• Working principle: condenser (16-mm diaphragm)
• Phantom power required: DC 48 V
• Directivity pattern: unidirectional (cardioid)
• Frequency response: 30 Hz – 18 kHz
• Output impedance: 100 Ω, ±30 % (1 kHz)
• Load impedance:
• Sensitivity: –38 dB, ±3 dB (0 dB = 1 V/Pa at 1 kHz)
• Connector: 3-pin XLR, male
• External dimensions (Ø × L):
• 21 mm × 117 mm
• Weight: 85 g (mic body only)
• Included accessory: 5/8-inch to 3/8-inch screw adapter
