Tascam TM-90BM Boundary Condenser Microphone

The Tascam TM-90BM is a boundary condenser microphone designed to deliver low-profile vocal and instrument reproduction for speakers, musicians, and audio engineers in conference and office rooms, recording studios, and live stage applications. Its half-supercardioid polar pattern aids in rejection of off-axis sounds and a maximum SPL of 140 dB allows distortion-free capture of loud sources such as drums.

The 50 Hz to 18 kHz frequency response is well-suited to speech and many musical instruments due to its natural attenuation of sub-low frequencies. Further control of the low end is provided via a 3-position Bass Tilt switch. The supplied patch cable, which is terminated with an XLR 3-pin male jack, allows for easy connection to a mixer or microphone preamp. Mic preamps that supply 9 to 52V phantom power are sufficient for operation of the mic.

The TM-90BM ships with a hardshell carry case for safe transport between gigs.

Features

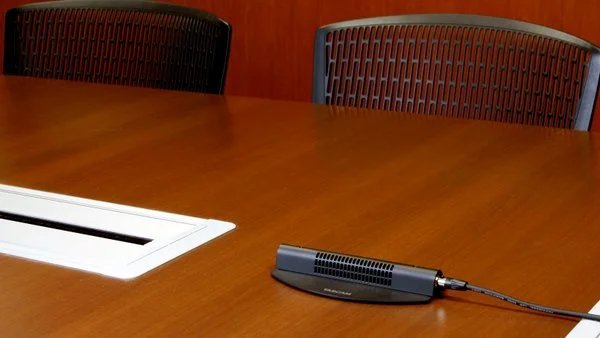

• Suitable for tabletop, wall, or floor placement
• Low-profile design and matte black finish are ideal for on-camera use
• Half-supercardioid polar pattern reduces pickup of ambient sound from the rear of the mic
• 50 Hz to 18 kHz frequency response attenuates low-frequency rumble
• Works with 9 to 52V phantom power
• Dedicated 9.6′ patch cable with XLR 3-pin male jack
• High maximum SPL of 140 dB enables handling of high-level sound sources

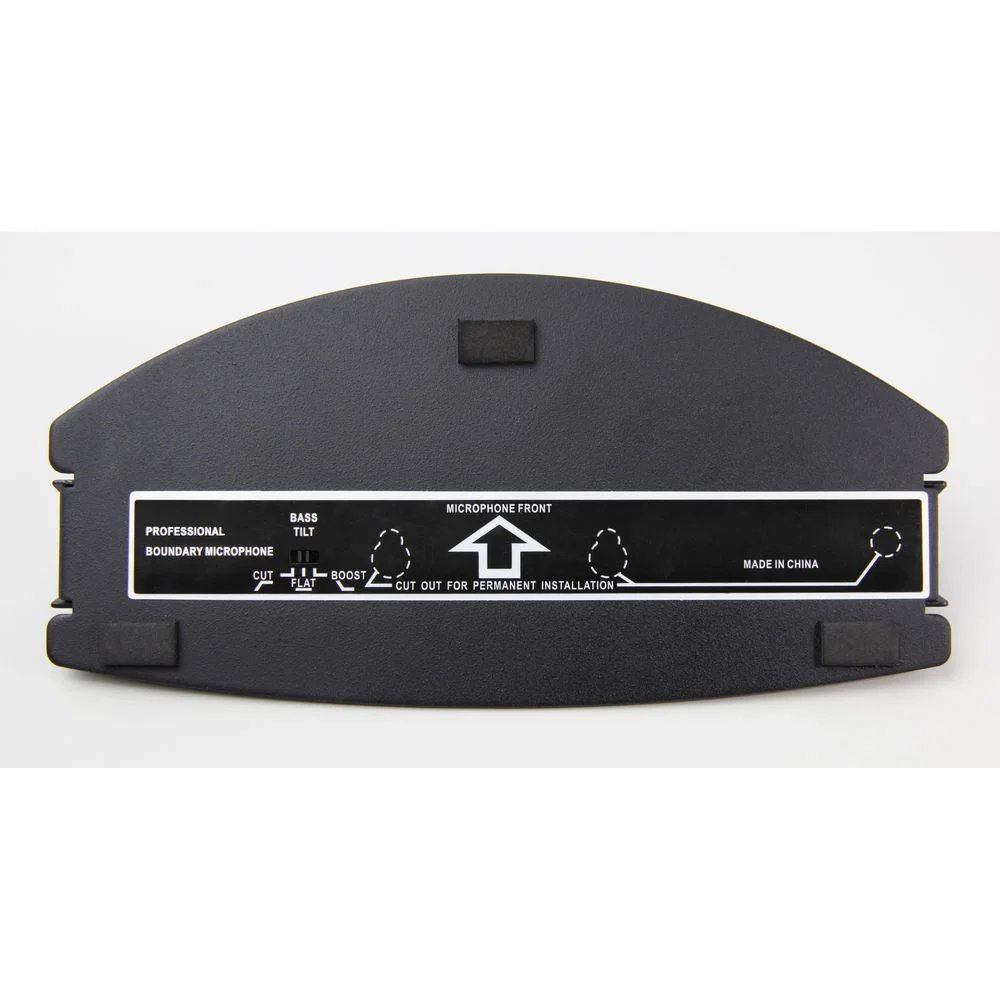

• 3-position bass switch offers -5 dB cut, flat, and +5 dB boost settings at 100 Hz

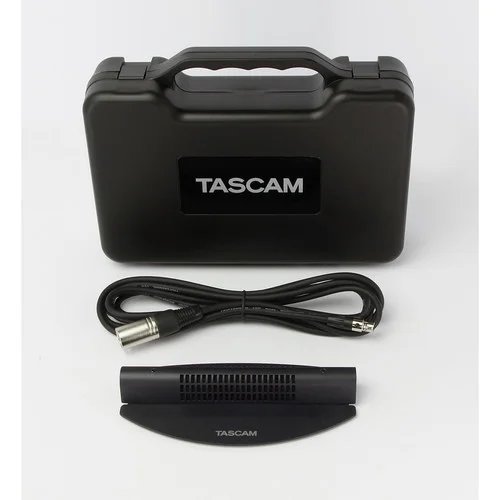

• Includes hardshell carry case for safe and simple transport

​​

Analog Performance

• Sound Field Mono
• Operating Principle Pressure Gradient
• Capsule Electret Condenser
• Circuitry Solid-State
• Polar Pattern Unidirectional
• Frequency Range 50 Hz to 18 kHz
• Signal-to-Noise Ratio 68 dB
• Maximum SPL 140 dB SPL RMS
• Pad None
• Impedance 150 Ohms
• Load Impedance 1 Kilohms
• Sensitivity -35 dB at 1 kHz
• Low-Cut Filter @ 100 Hz

1. Output Connectors 1 x 3-Pin XLR
2. Operating Voltage 9 to 52 V

• Dimensions (W x H x D) 6.7 x 0.9 x 3.2″ / 170 x 24 x 81.5 mm
• Weight 9.17 oz / 260 g

• Package Weight 1.75 lb
• Box Dimensions (LxWxH) 10.2 x 7.6 x 3″
