Sennheiser EW 500 FILM G4 Wireless Combo System Kit with MKE2 Lavalier Microphone

The ew 500 Film G4 Wireless Combo System Kit with MKE2 Lavalier Microphonefrom Sennheiser is the latest addition to Sennheiser’s evolution family of wireless microphone systems. This package includes the EK 500 G4 camera mount receiver, SK 500 G4 bodypack transmitter, SKP 500 G4 pro plug-on transmitter with phantom power, and an MKE 2 Gold clip-on microphone. Accessories include a fur windscreen, CA 2 camera mount, 1/8 to 1/8″ cable, 1/8″ to XLR cable, and six AA alkaline batteries. This wireless system provides flexibility for your video sound and field recording applications.

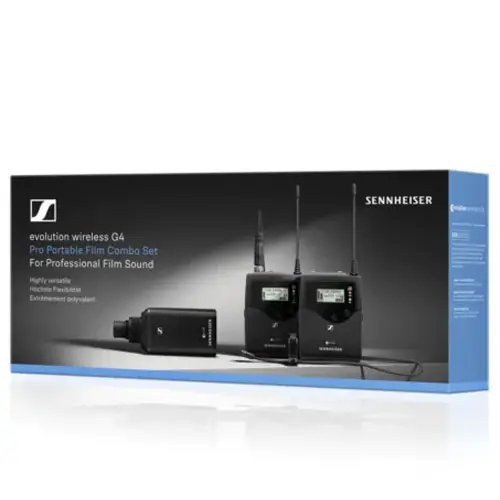

What’s In The Box

• EK 500 G4 camera receiver
• SK 500 G4 bodypack transmitter
• SKP 500 G4 pro plug-on transmitter
• MKE 2 clip-on microphone
• 4 AA batteries
• CL 1 3.5mm jack cable
• CL 500 XLR to 3.5mm jack adapter cable
• CA 2 camera adapter
• Fur windscreen for MKE 2

Features

• Highly versatile solution for professional film sound
• Robust all-in-one wireless system for professional recording
• Easy to use and effortless setup
• Simple mounting
• Easy and flexible wireless synchronisation between transmitter and receiver via infrared
• Up to 88MHz bandwidth, up to 32 channels
• Up to 100 meter range
• Increased RF output power (10/30/50mW)
• Up to 8 hours of operation time

Specifications

EK 500 G4 Receiver

• Wireless Frequency: 606.6MHz – 613.5MHz
• Receiving Frequencies: 2880, adjustable in 25kHz
• Frequency Banks:
  • 20 with 32 factory-preset channels
  • 6 with 32 programmable channels
• Switching Bandwidth: Up to 72MHz
• Squelch:
  • Low: 5dBμV
  • Middle: 15dBμV
  • High: 25dBμV
• Compander: HDX
• Power Supply: 2 AA batteries, (BA 2015 Accupack optional)
• Dimensions: 82mm x 64mm x 24mm
• Weight: 130g

SK 500 G4

• Frequency Response: 25Hz – 18kHz
• RF Power Output: 50mW (Maximum)
• Wireless Frequency: 606.6MHz – 613.5MHz
• Transmission Frequencies: 2880, adjustable in 25kHz
• Frequency Banks:
  • 20 with 32 factory-preset channels
  • 6 with 32 programmable channels
• Switching Bandwidth: Up to 72MHz
• Deviation: ±24kHz / ±48kHz (Nominal/Peak)
• Compander: HDX
• Power Supply: 2 x AA batteries (BA 2015 Accupack optional)
• Operating Time: Approx. 8 hours
• Dimensions: 82mm x 64mm x 24mm
• Weight: 160g

MKE 2 Microphone

• Transducer Principle: Pre-polarized condenser
• Polar Pattern: Omni-directional
• Sensitivity: 5mV/Pa ± 3dB
• Sound Pressure Level: 142dB, maximum
• Frequency Response: 20Hz – 28kHz ± 3dB
• Connector: 3.5mm jack
• Cable Length: Approx. 1.60m

SKP 500 G4

• Frequency Response: 80Hz – 18kHz
• RF Power Output: 50mW (Maximum)
• Wireless Frequency: 606.6MHz – 613.5MHz
• Transmission Frequencies: 2880, adjustable in 25kHz
• Frequency Banks:
  • 20 with 32 factory-preset channels
  • 6 with 32 programmable channels
• Switching Bandwidth: Up to 72MHz
• Deviation: ±24kHz / ±48kHz (Nominal/Peak)
• Compander: HDX
• Power Supply: 2 x AA batteries (BA 2015 Accupack optional)
• Operating Time: Approx. 8 hours
• Dimensions: 105mm x 43mm x 43mm
• Weight: 195g
