Description

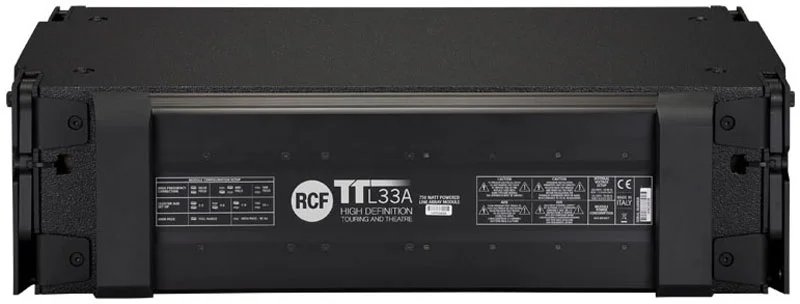

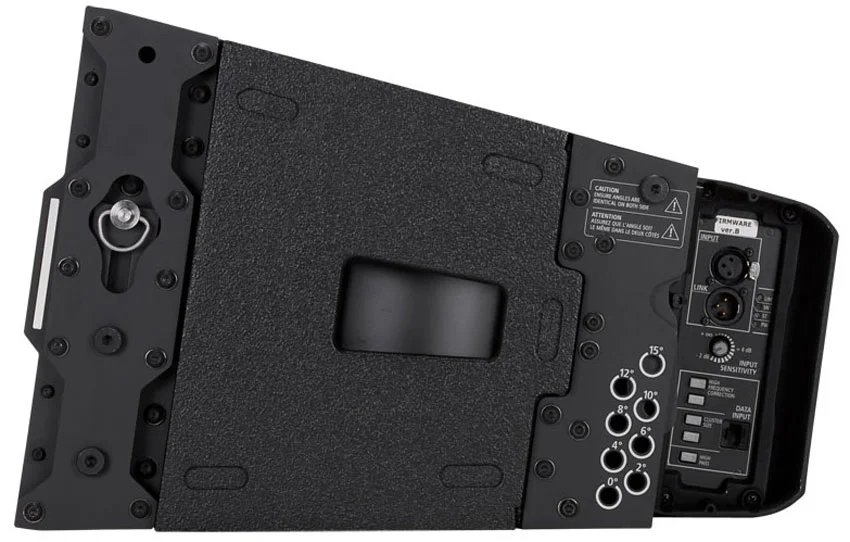

The TTL33-A is a compact, wide dispersion, 3 way active line array module that offers the highest performance from a small size line array.
The incredible high output and dynamics, the extreme accuracy and high frequency extension plus the compact size makes the TTL33-A the ideal tool for outdoor sound reinforcement, live performances and events as well as fixed installations in theatres, concert halls or auditoriums.
Features
- 750 W switching amplifiers
- wide, constant directivity, coverage angle
- 6 high power neodymium transducers
- High quality analog input board
- 96 kHz, 32 bit DSP processing
- Soft limiter and RMS protection
- Maximum output per size available on the market
Acoustical Specifications
- Frequency Response -3 dB: 60 Hz ÷ 20 kHz
- Max SPL: 134 dB
- Horizontal coverage angle: 100°
- Vertical coverage angle: 15°
- Compression Driver: 3 X 1.0″ neo, 37mm voice coil
- Midrange: 8″ neo, 64mm voice coil
- Woofer: 2 x 8″ neo, 64 mm voice coil
Input/Output Section
- Input signal: Bal/unbal
- Input connectors: XLR
- Output connectors: XLR
- Input sensitivity: -2 dBu / + 4 dBu
Processor Section
- Crossover frequencies: 400 Hz / 1800 Hz
- Protections: Thermal, HF
- Limiter: RMS, fast limiter
- Controls: HF correction, cluster size, HPF
Amplifier Specifications
- Total power: 750 W
- High frequencies: D/250 W
- Mid frequencies: D/500 W
- Low frequencies: D/500 W
- Cooling: Convection/forced
- Connections: Powercon in/out
Cabinet
- Cabinet Material: Baltic birch
- Hardware: Array side fittings
- Handles: 2 on side
- Colour: Black
Physical Specifications
- Height: 300 / 11.8 mm/inch
- Width: 760 / 30.0 mm/inch
- Depth: 450 / 18.2 mm/inch
- Net Weight: 32.5 / 71.5 kg/lbs
