Description

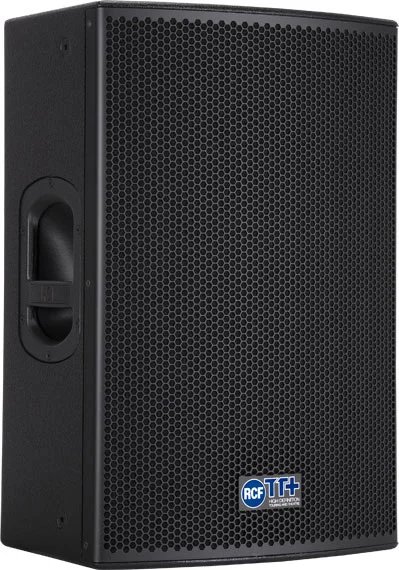

The high power TT22 is a high performance, wide bandwidth system in a compact and efficient package.
Extended frequency response is provided by a new 12” low frequency neodymium driver and a new 3” diaphragm compression driver mounted on a rotatable 90° x 40° constant directivity horn. The new high frequency driver utilises a titanium diaphragm with controlled break-up modes for improved sonic performance at high frequencies and the crossover design and the woofer cone profile have been optimised to match the directivity of the high frequencies horn and low frequencies section through the crossover region.
Features
- 750 W switching amplifiers
- Wide, constant directivity, horizontal coverage angle
- High power neodymium transducers
- High quality analog input board
- Soft limiter and rms protection
- Maximum output per size available on the market
Acoustical Specifications
- Frequency Response -3 dB: 50 Hz ÷ 20 kHz
- Max SPL: 131 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 40°
- Compression Driver: 1.5 ” neo, 75 mm voice coil
- Woofer: 12″ neo, 87 mm voice coil

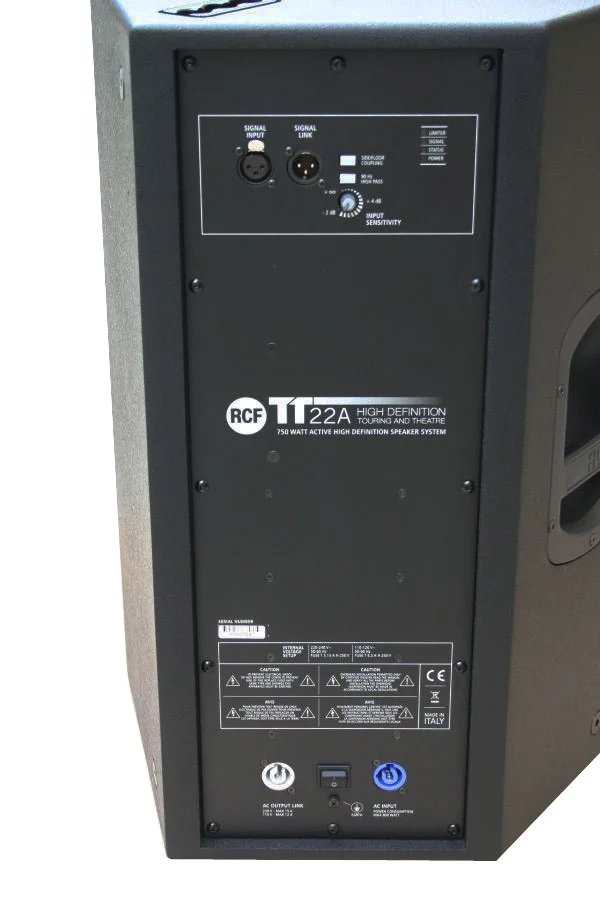

Input/Output Section
- Input signal: Bal/unbal
- Input connectors: XLR
- Output connectors: XLR
- Input sensitivity: -2 dBu / + 4 dBu
Processor Section
- Crossover frequencies: 1200 Hz
- Protections: Thermal, HF
- Limiter: Fast limiter
- Controls: Side/ floor coupling, HPF
Amplifier Specifications
- Total power: 750 W
- High frequencies: D/250 W
- Low frequencies: D/500 W
- Cooling: Convection
- Connections: Powercon in/out
Cabinet
- Cabinet Material: Baltic birch
- Hardware: 6 x fly tracks
- Handles: 2 on side
- Pole Mount/Cap: Yes
- Colour: Black
Physical Specifications
- Height: 600 / 23.62 mm/inch
- Width: 400 / 15.74 mm/inch
- Depth: 400 / 15.74 mm/inch
- Net Weight: 24.2 / 53.35 kg/lbs
