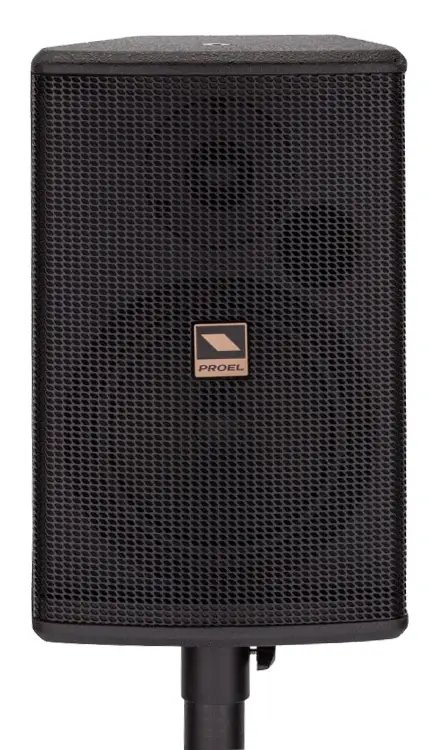

Proel Lite 6A Active 150W 2-Way Loudspeaker Systems

The LITE Series by PROEL is an extended range of active and passive speaker systems with plywood cabinet offering the renowned PROEL sound and a high-level performance in a reliable and affordable package.
For the construction of the cabinets we have used plywood, a very lightweight and durable material that makes moving and installing these speakers very quick and easy. Strong, anti-scratch paint and steel grilles with an internal foam layer provide proper protection for years of service.

The dual-angle pole holder featured in 8”, 10”, 12” and 15” models offers the possibility to obtain a more uniform coverage of the audience.
For the high frequency reproduction of LITE Series we have designed wide-dispersion horns, able to provide constant coverage for large audiences and detailed response with low distortion.

The high-excursion woofers, together with carefully tuned vented cabinets, offers an extended response with deep and tight basses. The LITE Series includes 6 active models ranging from 6.5” to dual 15” woofers, plus 1 satellites + subwoofer system. The extremely lightweight power modules used in the active models feature the latest technologies for amplifi cation, such as Switch Mode Power Supply and CLASS D output stages, which provides a massive amount of power with a reduced weight. The power modules are hosted in fully-sealed die-cast aluminum boxes that provides protection, perfect insulation of the cabinet from the outside and extremely efficient cooling.

Each module includes a sophisticated pre-amp section with up to 24 dB/ oct. phase aligned crossover filters and active EQ filters for the system’s fine tuning. The DUAL LIMITER circuit ensures an undistorted sound even at the loudest level and a total loudspeaker protection.
The LT loudspeaker systems can be combined with the SW subwoofers, available in 5 models and capable of providing the perfect low frequency extension for each model of the series.

Features

•    1” neodymium tweeter
•     6.5” woofer with 1” VC
•     150 W peak power
•     75 W continuous class AB amplifier
•     LINE/MIC input
•     SPL MAX 110 dB
•     Frequency response 75 Hz – 20 kHz
•     MDF cabinet
•     3 x M4 flying points
•     Speaker stand adapter included

Specification

•     System type: 2-way vented enclosure
•     High Frequency Device: 1″ neodymium tweter
•     Low Frequency Device: 6,5” woofer with 1” VC
•     Angular Coverage: 60° H x 40° V
•     Total peak power: 150 W
•     Amplifier Continuous Power: 75 W
•     Power Supply: LINEAR
•     Processing: Analog
•     Frequency Response: 75 Hz – 20 kHz
•     Max SPL: 110 dB

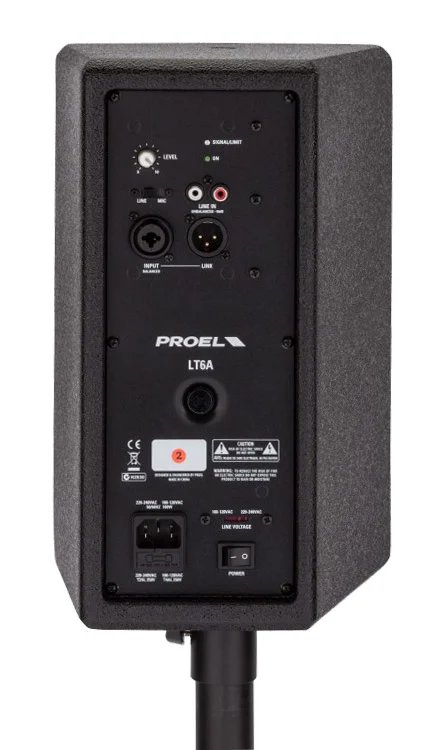

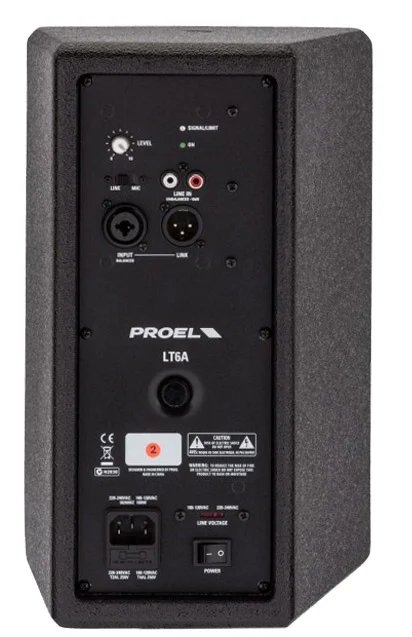

•     Connectors: IN: COMBO, 2xRCA LINK: XLR M
•     Controls: LEVEL, LINE/MIC selector
•     Flying System: 1 x M4 top / 2 x M4 bottom
•     Construction: Plywood
•     Cabinet Colour: Black
•     Power Supply: 230 VAC or 120 VAC 50/60 Hz with LINE VOLTAGE selector
•     Dimensions (W x H x D): 204 x 295 x 223 mm
•     Weight: 5.9 kg / 13 lbs
