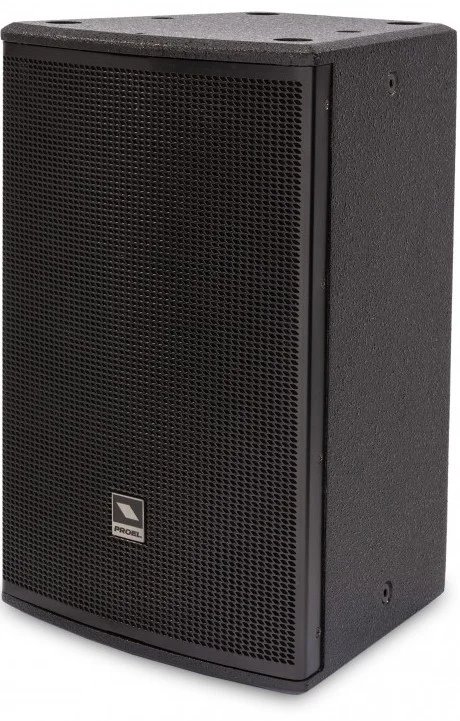

Proel Lite 10P Passive 200W 2-Way Loudspeaker Systems

The LITE Series by PROEL is an extended range of active and passive speaker systems with plywood cabinet offering the renowned PROEL sound and a high-level performance in a reliable and affordable package.

For the construction of the cabinets we have used plywood, a very lightweight and durable material that makes moving and installing these speakers very quick and easy. Strong, anti-scratch paint and steel grilles with an internal foam layer provide proper protection for years of service.

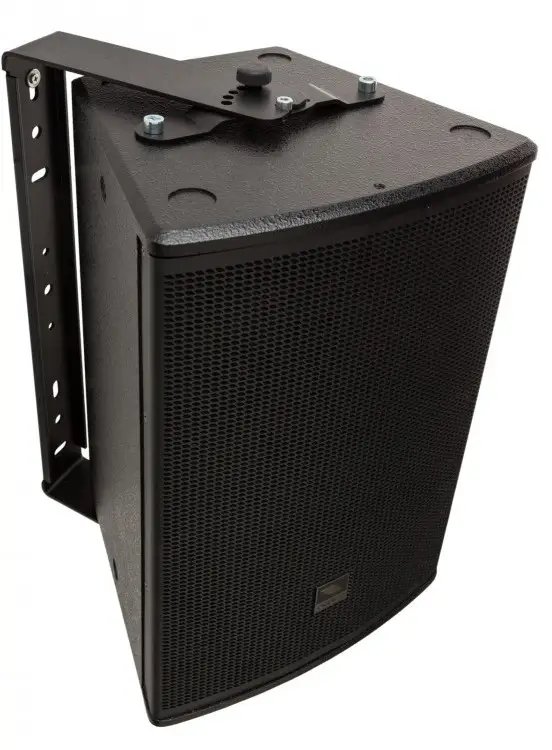

The dual-angle pole holder featured in 8”, 10”, 12” and 15” models offers the possibility to obtain a more uniform coverage of the audience.

For the high frequency reproduction of LITE Series we have designed wide-dispersion horns, able to provide constant coverage for large audiences and detailed response with low distortion. The high-excursion woofers, together with carefully tuned vented cabinets, offers an extended response with deep and tight basses.

The LITE Series includes 4 passive models, featuring carefully designed crossover filters with HF electronic protection. The choice of black or white cabinet, built-in flying points and a wide range of accessories make them suitable for any kind of fixed installation.

Features

• 1” compression driver with 1” VC on a constant coverage 90° x 60° horn
• 10” woofer with 2” VC
• 200W continuous power rating
• Frequency response 60 Hz – 20 kHz
• Lightweight plywood cabinet
• 1 x rear
• 4 x M10 flying points
• Available in BLACK and WHITE
• SPECIFICATIONS
• ​System type: 2-way vented enclosure
• High Frequency Device: 1” compression driver with 1″ VC
• Low Frequency Device: 10” woofer with 2” voice coil
• Angular Coverage: 90° H x 60° V
• Power Rating Continuous: 200 W
• Power Rating Peak: 400 W
• Impedance: 8 ohm
• Frequency Response: 60 Hz – 20 kHz
• SPL (1w / 1m): 94
• Connectors: 2 x SPEAKON
• Flying System: 4 x M10 top/bottom, 3 x M5 rear
• Construction: Plywood
• Cabinet Colour: Black / White
• Handles: 1 x rear
• Mounting Pole: 1 x bottom, dual angle
• Dimensions (W x H x D): 340 x 515 x 310 mm
• Weight: 11.5 kg / 25.4 lbs.
