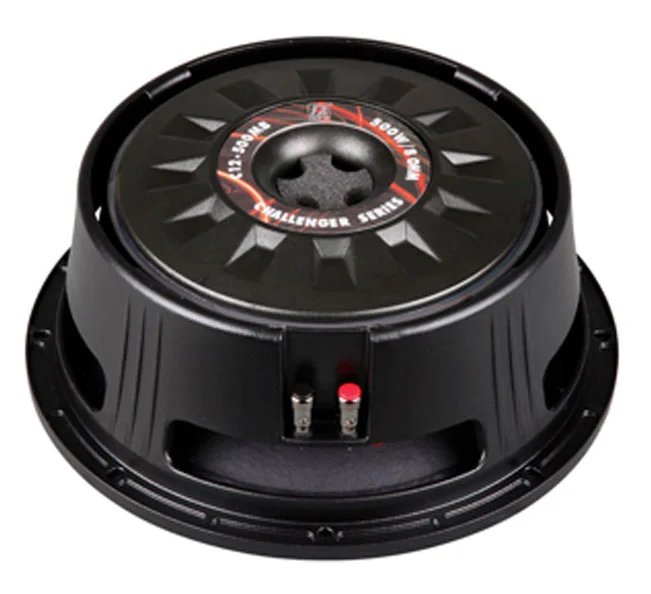

P Audio Challenger C12 500MB 12 Inch 500W RMS Low Frequency Driver
Rp1.650.000
Stok 100
Stok 100
Pengiriman
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
DHL Courier delivery
DHL courier will deliver to the specified address
1-3 Days
From $40
Warranty 1 year
Free 30-Day returns
Description
The P.Audio C12-500MB is a high performance wide bandwidth transducer. The C12-500MB is an upgraded design that features many of P.Audio’s new technologies and performance upgrades. The 12 inch (305mm) diameter piston will produce extremely high sound pressure levels in the mid band and upper mid frequencies and is ideal for high level response in both live sound and recorded music venues. The transducer uses high energy ferrite magnetics to achieve a very high acoustic output to weight ratio.
The C12-500MB features a very large 3.9 inch (99.3mm) diameter voice coil that provides an AES rated 500 watts of continuous power handling and a full 2000 watts of peak rated power handling when sufficient amplifier headroom is available. The C12-500MB utilizes P.Audio’s Auto Balanced Cooling (ABC) technology to not only improve transducer power handling and reliability but to also increase power compression performance by carefully balancing and directing airflow to critical areas.
- 3.9” Large Format Voice Coil
- 2000 Watts Peak Power Handling
- Active Balanced Cooling
- Ferrite Magnetics
- Precision Rectangular Ribbon Wire Geometry
- Die Cast Aluminum Chassis
- Nominal diameter…………………………………………305 mm/12 in
- Power rating…………………………………………….500 W(AES)
- Nominal impedance…………………………………..8Ω
- Sensitivity………………………………………………..95 dB
- Frequency range……………………………………….60-3000 Hz
- Chassis type…………………………………………….Cast aluminum
- Magnet type……………………………………………..Ferrite
- Magnet weight …………………………..……………..2.9 kg/100.6 oz
- Voice coil diameter………………….…………………99.3 mm/3.9 in
- Coil material………………….………………………….CCA-R
- Former material……………….………………………..Glass fiber
- Cone material……………….…………………………..Paper
- Surround material……………..………………………..Cloth
- Suspension……………..………………………………..Single
- X-max……………..……………………………………….4.5 mm/0.18 in
- Gap depth……………..………………………………….8 mm/0.30 in
- Voice coil winding width……………..…………………16.9 mm/0.67 in
- Packing dimension WxDxH (mm)……………………355 x 355 x 180
- Net weight………………………………..……………….9.7 kg/21.4 lb
- Shipping weight………………………………..………..10.5 kg/23.1 lb
