Mipro ACT312B/2*ACT32H Double Mic Wireless Microphone

The Mipro ACT-312B / ACT-32H wireless microphone system comprises of one ACT-312B dual channel UHF radio mic receiver and two ACT-32H hand held wireless microphone transmitters.

The system operates on Channel 38 which requires a licence.

Automatic Channel Targeting (ACT) feature makes system set up extremely simple by matching and synchronising transmitters and receiver at the press of a button.

1U high, half rack width – rack mountable using the optional FB-71 or FB-72 rack mount ears – see related products.

• EIA standard 1/2U metal receiver.
• Receiver provides bias for booster where MIPRO antenna systems can be added for extended receiving range and stability.

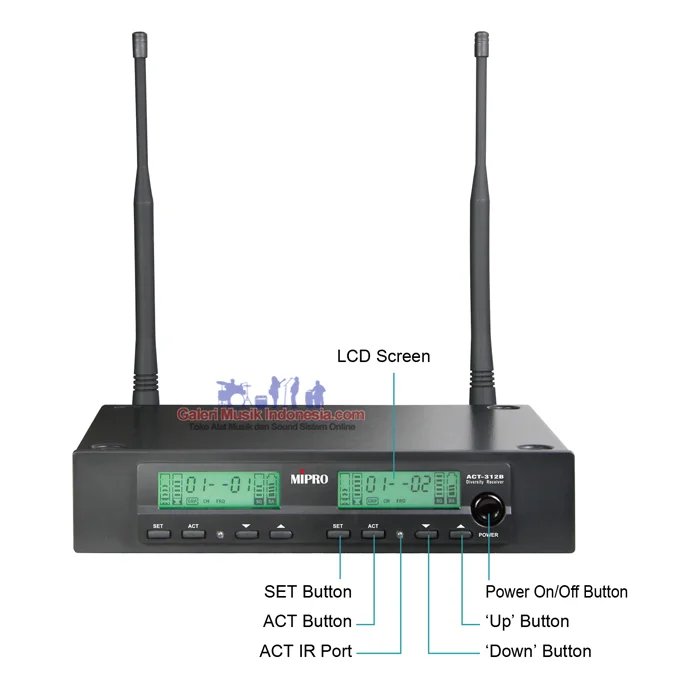

• Backlit LCD displays group, channel, frequency, RF level, antenna selection, AF level, battery level indicator, interference warning indicator, and panel lock indicator.
• A lit green light indicates a working mode when receiver detects an incoming signal or buttons touched. Light dims automatically when receiver is idle for about 10 seconds.
• Balanced XLR / unbalanced 1/4 ” audio output jack, output level switch and DC input are on the rear panel. One mixed-output switch is available for dual-channel receivers.
• High efficiency and low spurious PLL circuitry with Auto Scan functioin. Each receiver is presets with 11 groups, Groups 1~6, 7~10 have 8 &16 compatible channels respectively. Up to 8 channels in group 11 can be saved and recalled within 961 user-defined frequencies. A total of 112 preset channels per band.
• World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
• Advanced diversity technology for optimum reception range and reduces signal dropouts and the “PiloTone & NoiseLock” dual-squelch circuits prevent noise interference.
• Adjustable ‘SQ’ for higher sensitivity to increase receiving distance and lower sensitivity to reduce interference.
• Industry’s only RF interference warning indicator for ideal SQ level adjustment.
• DC input socket accepts 12~15V power supply.

The Mipro ACT-32H handheld wireless microphone transmitter has a cardioid condenser pick-up.

• Robust, lightweight plastic housing.
• The unique multi-layered metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound.
• Premium condenser capsules exhibit high fidelity, wide dynamic range, fast transient responses, good feedback rejection, accurate sound image characteristics, transparent sound quality and withstand maximum SPL.
• Reversible end-cap allows power on/off switch being locked to avoid accidental power-off during performance.
• Impact-resistant battery compartment holds 2 AA batteries.
• Backlit LCD displays various parameters and status.
• Stable PLL circuits. Automatically synchronized with the receiver’s frequency by MIPRO’s patented ACT™ function.
• Patented “built-in” antenna design.
• Interchangeable coloured rings for microphone channel identification on stage.
• High-efficiency circuitry design provides more than 16 hours of operation from 2 AA batteries (depending on the battery quality).

Tech specs:

Hand Held Transmitter Specification
