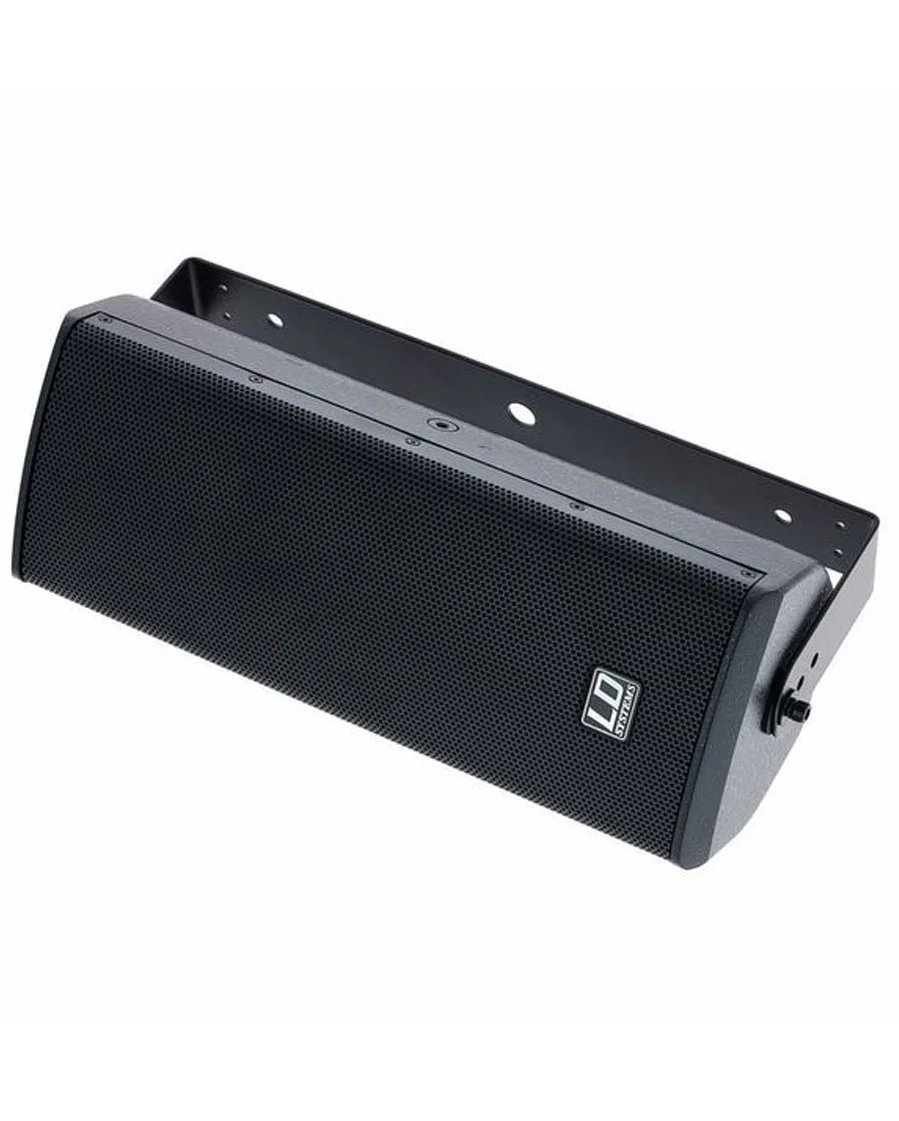

LD Systems SAT 242 G2 2 x 4inch passive Installation Speaker

The closed design of the sleek, compact speaker is loaded with 4″ custom woofers and a 1“ silk dome tweeter with wave guide, which provide for a maximum sound-level pressure of 108 dB. The LD SAT242G2 is rated for 100 W RMS power can can be used alone as a full-range speaker or with a subwoofer in the in the LD installation series for bass expansion.

The cabinet of the SAT242G2 is made of 12mm MDF with a durable textured finish and is available in black and white. It is connected via spring terminals. M6 inserts and an included mounting bracket provide numerous possibilities for mounting; a universal joint mount is available as an accessory.

• Product type Installation Loudspeakers
• Type Wall-mounted Loudspeaker
• Low/mid Woofer dimensions 2 x 4 “
• Woofer dimensions (mm) 2 x 101 mm
• Woofer magnet Ferrite
• Woofer brand Custom-made
• HF driver dimensions 1 “
• HF driver dimention (mm) 25 mm
• HF driver magnet Ferrite
• HF driver brand Custom-made
• Dispersion (H x V) 60 x 60 °
• Load rating (RMS) 100 W
• Frequency response 75 – 20000
• SPL (1W/1m) 88 dB
• Max. SPL 108 dB
• Impedance 8 Ohm(s)
• Protection circuits HF Driver
• Loudspeaker inputs 1
• Speaker input connections Clamp connector
• Speakers per amplifier channel (DSP44/45K) 4
• Cabinet material 12 mm MDF
• Cabinet surface texture paint
• Cabinet colour Black
• Cabinet construction Closed
• Width 140 mm
• Height 378 mm
• Depth 135 mm
• Weight 4,15 kg
