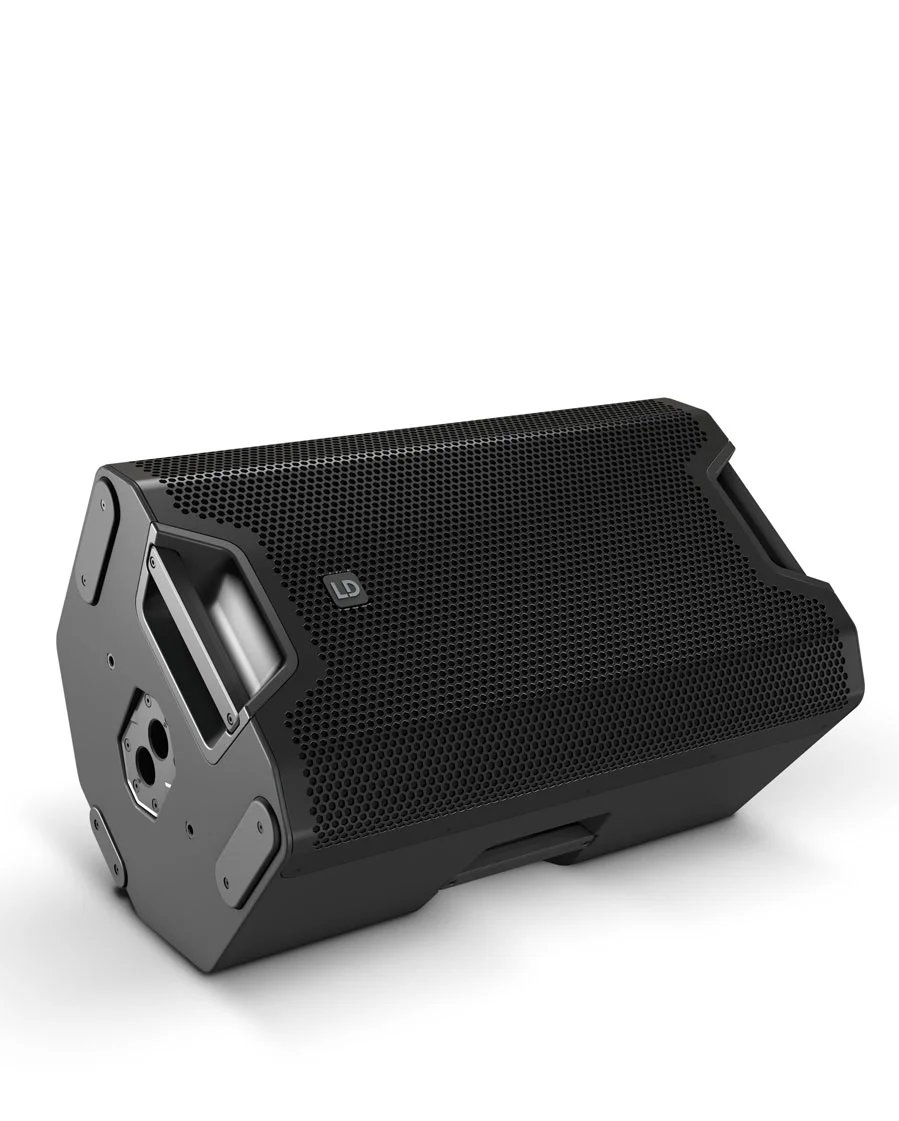

LD Systems ICOA 15A 15inch Powered Coaxial PA Loudspeaker

This full-range loudspeaker impresses with its outstanding sound, even at low frequencies. The ICOA 15 A by LD Systems is a genuine all-rounder that offers unparalleled features for its class. Its coaxial design, rotating, BEM-optimised CD horn and extensive and precisely calibrated DynX DSP presets make this powered 15″ loudspeaker exceptionally flexible.

The outstanding bass reproduction from the horn-loaded woofer makes the LD ICOA 15 A the ideal choice for musicians, bands, entertainers and dance schools. It also allows DJs to play sets without the need for a subwoofer. Deployed vertically, the speaker impresses as a satellite; horizontally, it’s excellent in suspended systems or as a floor monitor. The efficient class-D power amplifier delivers 128 dB max. SPL and 1200 W peak performance.

Drawing on DynX DSP technology by LD Systems, the speaker delivers perfect performance with maximum clarity and power under all conditions. 4 presets, a 3-band EQ and a delay function facilitate optimal adjustment of the sound to the venue conditions. The 2 line/mic input channels with individual gain controllers, plus mono mix output, allow a variety of signal sources to be connected. Thanks to its shock-resistant front grille and ideal 55° tilt angle, the LD ICOA 15 A is also outstanding as a floor monitor. Placed vertically, the 36 mm dual tilt stand attachment offers the choice of a 0° or 5° tilt angle for optimally adapting the system to the local acoustic environment.

Extensive and smart accessories for installation and transport are optionally available. 4 aluminium handles with an ergonomic rubber surface provide optimal grip when carrying the speaker.

Specification

• Product type PA loudspeaker
• Type Powered
• Low/mid driver dimensions 15 ”
• Woofer size 381 mm
• Woofer magnet Ferrite
• Woofer brand Custom-made
• Horn BEM optimized CD Horn
• HF driver dimensions 1 ”
• HF driver size 25.4 mm
• HF driver magnet Ferrite
• HF driver brand Custom-made
• HF driver voice coil 1.4 ”
• HF driver voice coil 35 mm
• Amplifier Class D
• Dispersion (H x V) 90° x 50°
• RMS 300 W
• Peak power 1200 W
• Frequency response 48 – 20000 Hz
• Crossover frequency kHz 2 kHz
• Max. SPL (peak) 128 dB
• Protection circuits Multiband limiter, over voltage, over-current, thermal overload
• Controls 2 x gain, On / off switch, Rotary/push encoder
• Indicators LC display
• Mic/ line inputs 2
• Mic-/ Line Input Connectors 6.3 mm jack Combination sockets (symmetrical), XLR
• Line inputs 1
• Line input connectors 3.5 mm TRS
• Line outputs 1
• Line output connectors XLR
• Operating voltage SMPS
• Power consumption 150 W
• Ambient temperature (in operation) 0 – 40 °C
• Operating voltage 100 V – 240 V AC / 50 – 60 Hz
• Relative Humidity < 80 %, not condensing
• Fuse T4AL 250 V
• Cabinet material Polypropylene
• Cabinet construction Bass Reflex
• Mounting 36mm flange (0°, 5°), 6 x M10 flying points
• Monitor angle 55 °
• Width 416 mm
• Height 695 mm
• Depth 415 mm
• Weight 24,3 kg
• Accessories (included) Power cord
