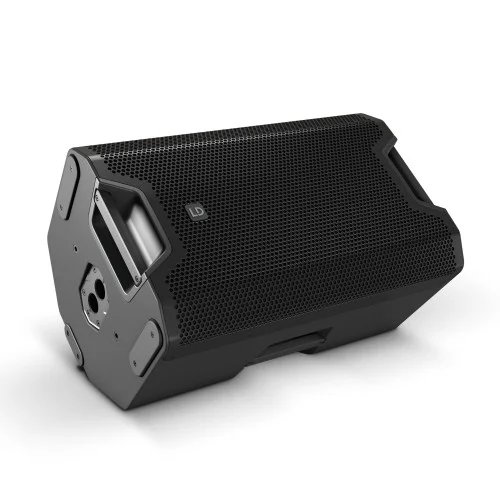

LD Systems ICOA 15A BT 15 Inch Active Coaxial PA Speaker with Bluetooth

The ICOA 15ABT active loudspeaker from LD System has crystal clear and transparent sound that you will appreciate when sounding outdoor and indoor events. The speaker is suitable for event agencies, music schools, dance studios, theatres, mobile DJs, sound engineers and musicians who need to have quality sound at their fingertips. The ICOA 15ABT is designed to meet modern trends, but retains the traditional quality and performance we have come to expect from LD Sytem products. In addition to flexible connectivity and Bluetooth wireless technology, you’ll find a clear LCD display on the control panel where you can use the potentiometers to customize the sound to your needs and preferences.

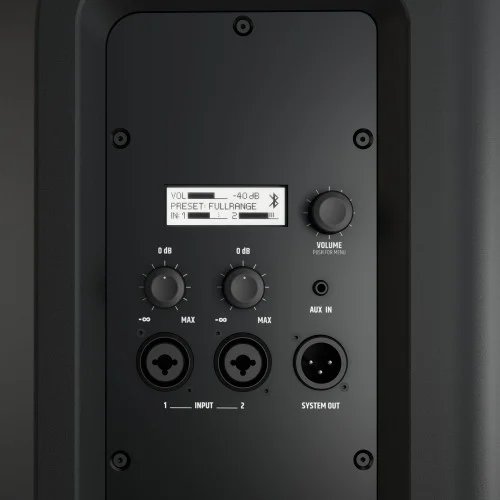

The ICOA 15ABT houses a 15″ coaxial speaker that, together with a Class D amplifier, offers a maximum output of up to 300W. The rear control panel features a pair of combo inputs, a stereo input for a music player, Bluetooth connectivity for smartphones and managing settings via an app or an XLR output for connecting to another PA. You can adjust the input signal with four Dynx DSP presets, a three-band EQ and a Delay effect. Two rotary potentiometers and a Volume control then let you conveniently adjust the sound. The speaker can be mounted in a 35 mm diameter stand. On the underside you will find two holes, one with 0° and the other with 5° tilt for optimum adjustment. You can also take advantage of the bevelled design to get an active monitor for live performance. The front is protected by a durable 4 mm aluminum grille that can withstand even the harshest impacts during transport. Then, four sturdy rubberized handles ensure comfortable and easy carrying.

• General
• Product type PA loudspeaker
• Type Powered
• Bluetooth Audio Decoder Bluetooth 4.0
• Low/mid Woofer dimensions 15 “
• Woofer dimensions (mm) 381 mm
• Woofer magnet Ferrite
• Woofer brand Custom-made
• Horn BEM optimized CD Horn
• HF driver dimensions 1 “
• HF driver dimention (mm) 25.4 mm
• HF driver magnet Ferrite
• HF driver brand Custom-made
• HF driver voice coil 1.4 “
• HF driver voice coil 35 mm
• Amplifier Class D
• Dispersion (H x V) 90° x 50°
• System Power (RMS) 300 W
• Peak power 1200 W
• Frequency response 48 Hz – 20000 Hz
• Crossover frequency kHz 2 kHz
• Max. SPL (Peak) 128 dB
• Protection circuits Multiband limiter, over voltage, over-current, thermal overload
• Controls 2 x gain, On / off switch, Rotary/push encoder
• Indicators LC display
• Mic/ line inputs 2
• Mic-/ Line Input Connectors 6.3 mm jack Combination sockets (symmetrical), XLR
• Line inputs 1
• Line input connectors 3.5 mm TRS
• Line outputs 1
• Line output connectors XLR
• Operating voltage SMPS
• Power consumption 150 W
• Ambient temperature (in operation) 0 – 40 °C
• Operating voltage 100 V – 240 V AC / 50 – 60 Hz
• Relative Humidity < 80 %, not condensing
• Fuse T4AL 250 V
• Cabinet material Polypropylene
• Cabinet construction Bass Reflex
• Mounting 36mm flange (0°, 5°), 6 x M10 flying points
• Monitor angle 55 °
• Width 416 mm
• Height 695 mm
• Depth 415 mm
• Features Bluetooth
• Weight 24,3 kg
• Accessories (included) Power cord
