Donner DP 01 Guitar Power Supply 10 Isolated DC Output for 9V/12V/18V Effect Pedal

The Donner DP-01 9V Guitar Pedal Power Supply has 10 outputs ,which includes 7 ways 9V 100mA, 1 way 9V 500mA, 1 way 12V 100mA, 1 way 18V 100mA. Donner Guitar Pedal Power Supply Quality is made of aluminum alloy material, which makes it light, and portable. It has a noise reduction function, low noise gives you a better experience, and direct current increases the stability of the power supply during use. Independent short-circuit protection, when one output is short-circuited, other outputs can still work. With bright blue LED for pedal board lighting and short circuit indicate.

FIT FOR GUITAR EFFECTS：

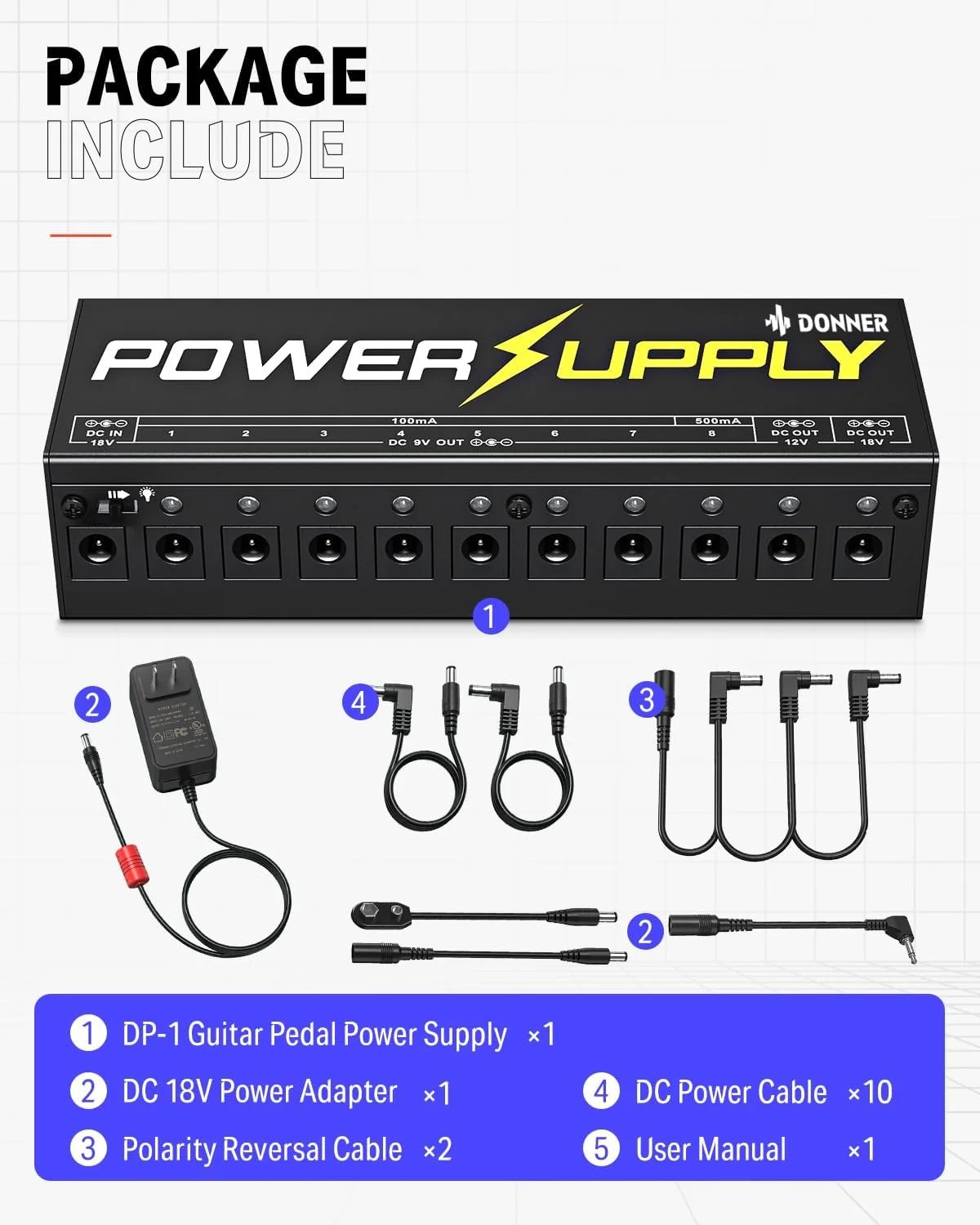

AC 100v-240V Input: DC 18V，Powers For 9V、12V or 18V PEDAL.Package includes 10pcs power cables.【Recently, Donner upgrade its logo. Due to the difference of production batches, the Donner logo on the product you received may be different.】

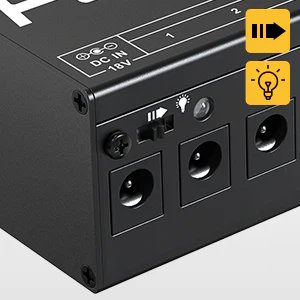

Switch For LED Lights
Turn the switch towards those LED lights, normally all lights would go on after the power is connected. If you don’t want all LED lights, please turn the switch back.

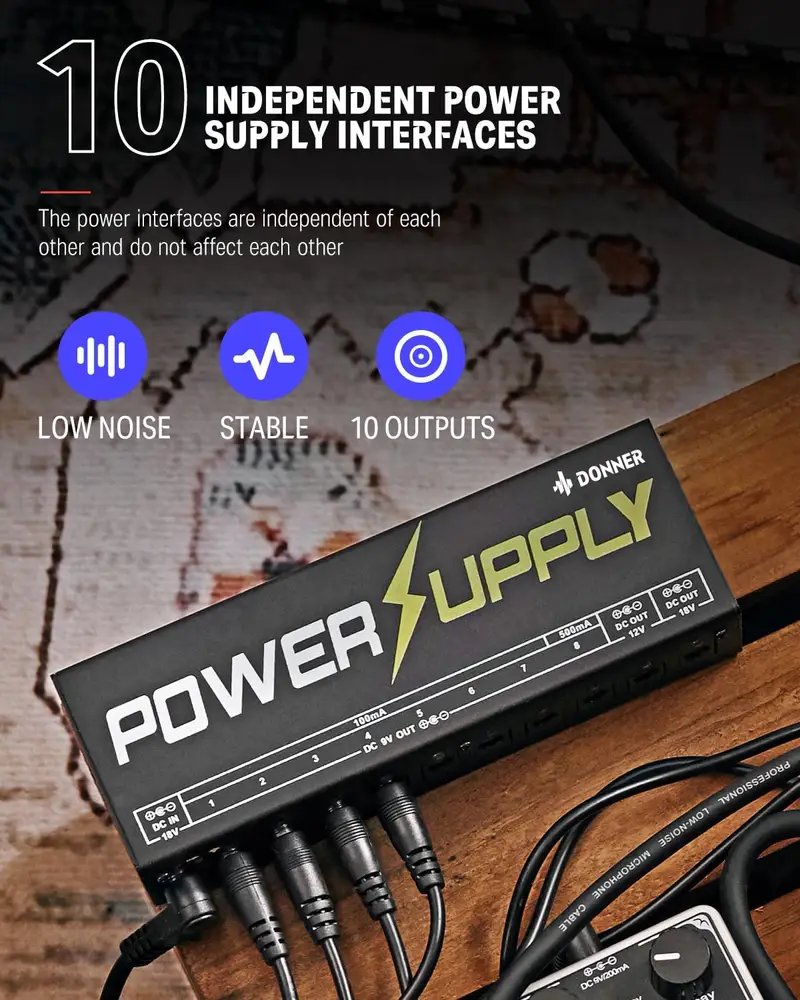

Independent and stable power supply
The power supplies of the Donner series of effects have absolutely independent power interfaces. It has an 18V power supply, and all outputs are independent of each other through its voltage regulator circuit. The aluminum alloy material is strong and compact and easy to carry.

Short-Circuit Protection
All 10 outputs in this unit have separate short-circuit protection, i.e. short circuit in one channel won’t affect other channels’ function. Under the circumstances of all LED lights on, LED light of the short-circuited channel will off, while lights in the other normal channels are still on. This helps locating the faults when there were short circuits among many effectors.

Donner Pedal Power Supply DP-1

• Powers For 9V、12V or 18V Pedal.
• Power: AC 100v-240V.

Input: DC 18V.

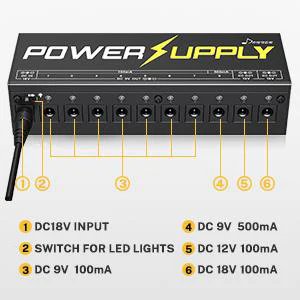

Output:

• 7 way 9V 100mA
• 1 way 9V 500mA
• 1 way 12V 100mA
• 1 way 18V 100mA
•

Specifications

• Material: Aluminium Alloy
• Light weight and portable

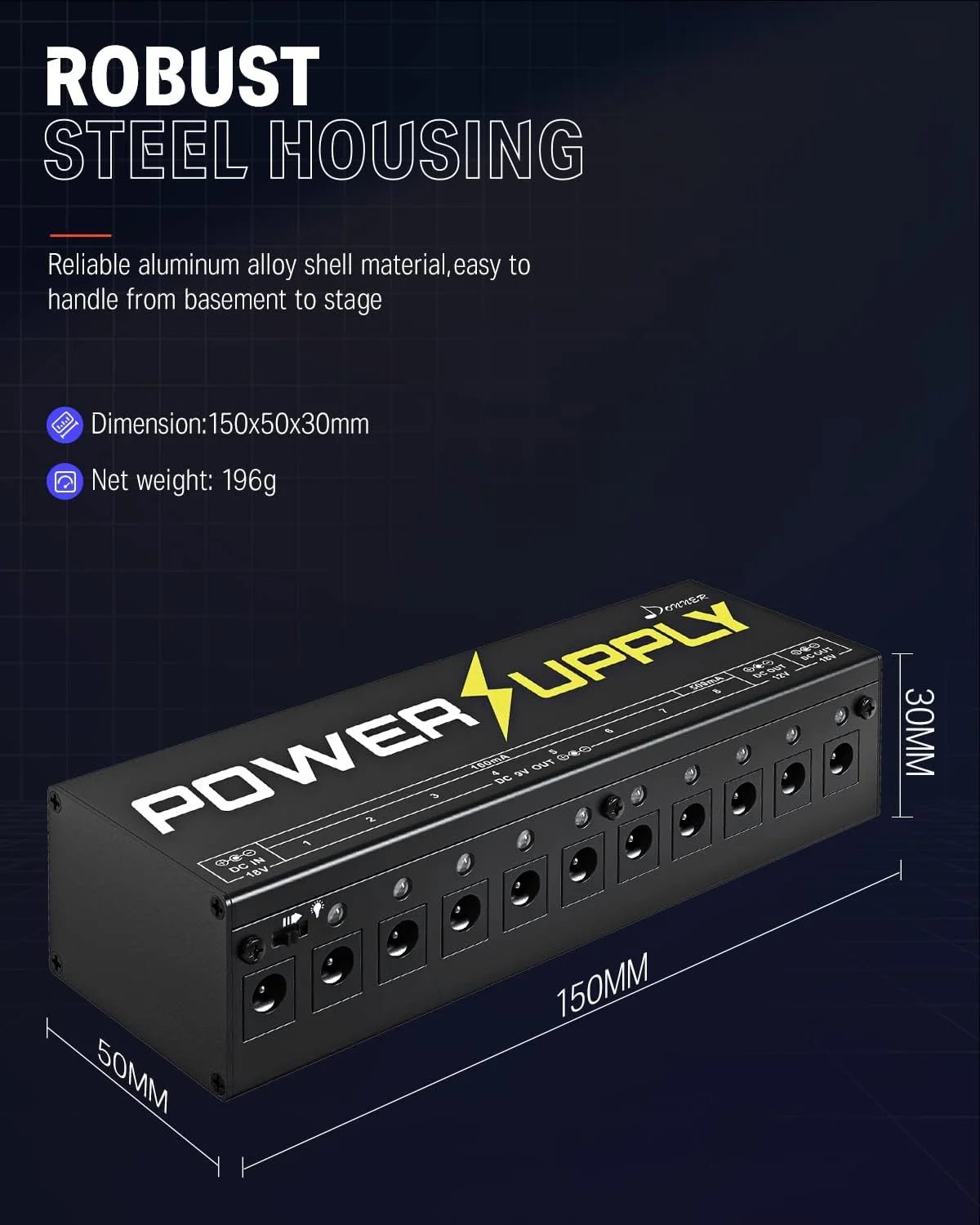

• Dimension:150x50x30mm
• Net weight: 196g
• Color: black
