dbx Di1 Active Direct Box
Rp1.200.000
Stok 100
Stok 100
Pengiriman
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
DHL Courier delivery
DHL courier will deliver to the specified address
1-3 Days
From $40
Warranty 1 year
Free 30-Day returns
Description

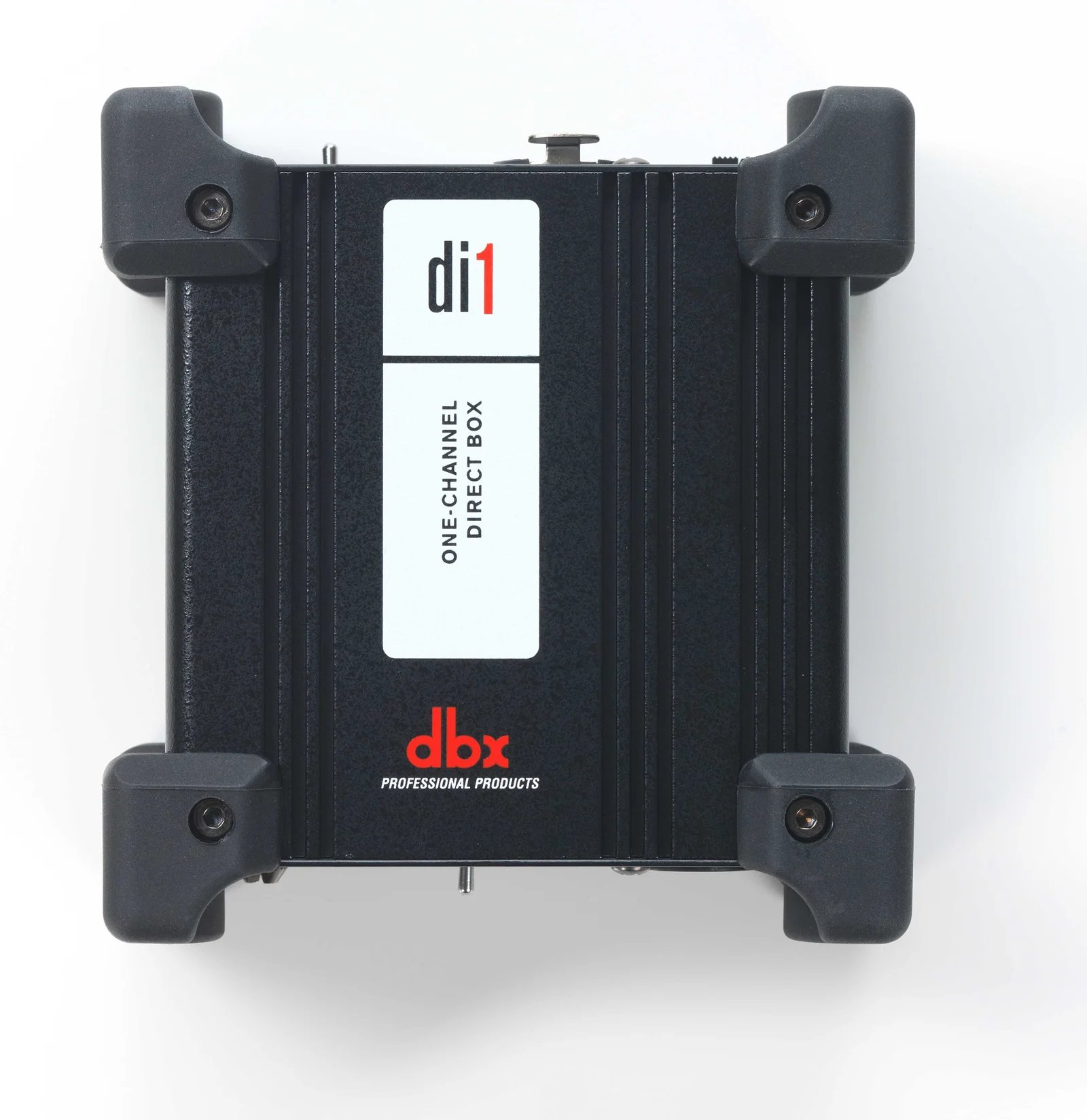

The dbx Di1 is a compact high-quality active direct injection box. Ideal for both studios and on the road, the Di1 will ensure audio signals reach their intended destination in both a balanced format and free from unwanted noise. Connect the output from electric guitars, bass amplifiers, keyboards, etc., directly to a console mixer without the use of a microphone. Built for toughness and reliability, the Di1 has all the features of a fully featured gig-ready workhorse DI unit.
Recommended for: Studio, Tour, Portable.
Features
Level and impedance matching function
Output impedance: > 600 Ohms
Signal pass through connector
Output connector: XLR balanced
Battery LED indicator
Distortion: (THD) < 0.005% at 1kHz, 0dBu
Phantom power LED indicator
Max Input: +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)
Output Noise: <-100dB unweighted
TS and XLR inputs and outputs
Frequency response: 10Hz to 70kHz, +0dB/-3dB
Attenuation control
Phantom Power: +18 volts DC to +48 volts DC
Ground lift switch
Main/Standby: 9V battery
Input Impedance: >250k Ohm
Metal Chassis
Specifications
- Input Impedance > 250k Ohm
- Max Input +12dBu (at 0dB) Level +32dBu (at -20dB) +52dBu (at -40dB)

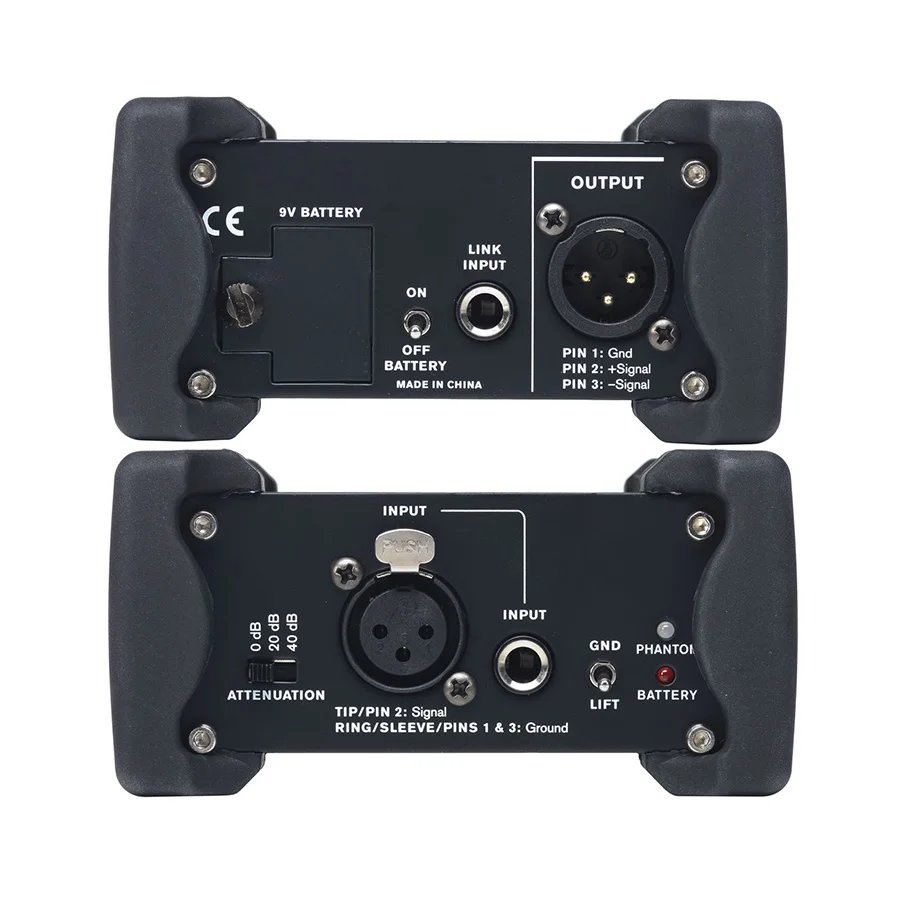

- Connectors Two Parallel 1/4″ jack connectors and a parallel XLR connector (unbalanced), 1/4″ Jack: Tip Hot, Sleeve Ground; XLR Jack: Pin 2 Hot, Pins 1 & 3 Ground
- Output Impedance > 600 Ohms
- Output Connectors XLR balanced
- Distortion (THD) < 0.005% at 1kHz, 0dBu
- Output Noise <-100dB unweighted
- Frequency Response 10Hz to 70kHz, +0dB/-3dB
- Main/Standby 9 Volt battery
- Phantom Power +18 Volts DC to +48 Volts DC
