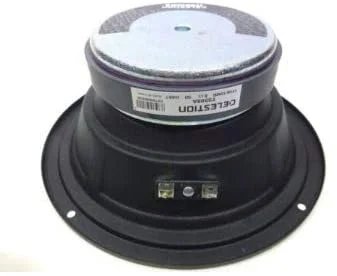

Celestion TF0615MR 50 W Speaker-8 Ohm
Rp410.000
Stok 100
Stok 100
Pengiriman
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
DHL Courier delivery
DHL courier will deliver to the specified address
1-3 Days
From $40
Warranty 1 year
Free 30-Day returns
Description
The Celestion TF0615MR 6″ professional midrange speaker is a purpose-built device dedicated to high-SPL, low distortion reproduction of the critical midband frequencies. Its integrated sealed chassis isolates the driver’s soft parts from the loudspeaker system woofer’s “back pressure”, while at the same time eliminating the need to construct a separate sub-enclosure. The TF0615MR features a 1.5″ high-temp voice coil and 17 oz. ceramic ferrite magnet, guaranteeing high efficiency and excellent power handling.
General Specifications
- Nominal diameter……………………….152mm/6in
- Power rating………………………………150Wrms
- Continuous power rating……………..2100W
- EIA power rating…………………………375W
- Nominal impedance…………………….8Ω
- Sensitivity………………………………….497dB
- Frequency range………………………..500-5,000Hz
- Voice coil diameter……………………..38mm/1.5in
- Chassis type………………………………Pressed steel
- Magnet type……………………………….Ferrite
- Magnet weight……………………………0.48kg/17oz
- Coil material………………………………Round copper
- Former material………………………….Polyimide
- Cone material…………………………….Kevlar loaded paper
- Surround material……………………….Treated paper
- Suspension………………………………..Single
Small Signal Parameters
Fs……………………..553Hz
Re…………………….5.53Ω
Le……………………..(at 1kHz)0.29mH
Mounting Information
Overall diameter………………………………..178mm/7.01in
Overall depth…………………………………….74mm/2.91in
Cut-out diameter………………………………..147mm/5.79in
Mounting slot dimensions……………………Ø 4.3mm/0.17in
Number of mounting slots……………………4
Mounting PCD range………………………….168.5mm/6.63in
Unit weight………………………………………..1.4kg/3.1lb
Packed Dimensions & Weight
Single pack size W x D x H…………………………………………..190mm x 200mm x 90mm/7.5in x 7.9in x 3.5in
Single pack weight………………………………………………………2kg/4.4lb
Multi pack size W x D x H…………………………………………….1070mm x 850mm x 860mm/42.1in x 33.5in x 33.9in
Multi pack weight………………………………………………………..220kg/485lb
