Celestion TF0615 PA Midrange Speaker 180mm 100W-8 Ohm
Rp450.000
Stok 100
Stok 100
Pengiriman
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
DHL Courier delivery
DHL courier will deliver to the specified address
1-3 Days
From $40
Warranty 1 year
Free 30-Day returns
Description
Celestion speakers have been powering the sound of rock music for over half a century. Musicians worldwide rely on Celestion speakers for their fantastic sound and exceptional reliability. Whether it’s the speaker in your guitar amp or a replacement PA speaker component, Celestion tests each speaker series rigorously to make sure you’re getting a great-sounding speaker that’s built to last. When you need great sound that’s ready for serious use, you can count on Celestion speakers.

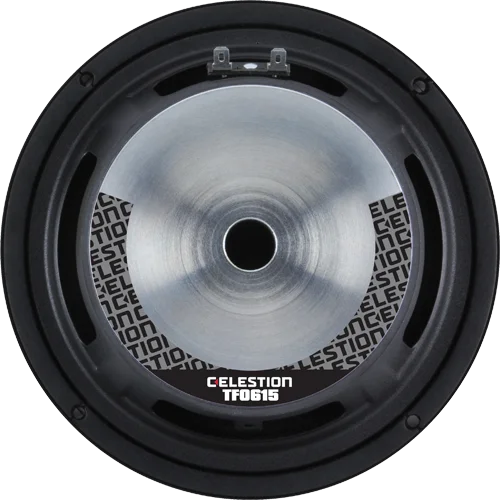

This Celestion TF0615 is a 6″ replacement speaker, with 50-watts RMS power handling at eight ohms. It’s an ideal replacement component for two-way and three-way systems.
General Specifications
Nominal diameter……………………………….152mm/6in
Power rating…………………………………..1100Wrms
Continuous power rating……………………2200W
EIA power rating………………………………3150W
Nominal impedance………………………….8Ω
Sensitivity……………………………………….494dB
Frequency range………………………………85-6,000Hz
Voice coil diameter……………………………38mm/1.5in
Chassis type……………………………….Pressed steel
Magnet type……………………………….Ferrite
Magnet weight…………………………….0.48kg/17oz
Coil material………………………………Round copper
Former material………………………….Polyimide
Cone material……………………………Kevlar loaded paper
Surround material……………………………Cloth sealed
Suspension……………………………….Single
Xmax……………………………….52.5mm/0.1in
Gap depth……………………………….6mm/0.24in
Voice coil winding width……………………………….6.5mm/0.26in
Small Signal Parameters
D………………………………0.14m/5.51in
Fs……………………………..104.7Hz
Mms…………………………..12.09g/0.43oz
Qms……………………………3.949
Qes…………………………….0.719
Mmd…………………………..10.316g/0.364oz
Qts……………………………..0.608
Re………………………………7.08Ω
Vas……………………………..6.411lt/0.23ft3
BI……………………………….8.85Tm
Cms……………………………0.19mm/N
Rms……………………………2.01kg/s
Le (at 1kHz)………………….0.47mH
Mounting Information
Overall diameter……………………………..178mm/7.01in
Overall depth……………………………..74mm/2.91in
Cut-out diameter……………………………..147mm/5.79in
Mounting slot dimensions……………………………..Ø 4.3mm/0.17in
Number of mounting slots……………………………..4
Mounting PCD range……………………………..168.5mm/6.63in
Unit weight……………………………..1.4kg/3.1lb
Packed Dimensions & Weight
Single pack size W x D x H……………………………..190mm x 200mm x 90mm/7.5in x 7.9in x 3.5in
Single pack weight……………………………..2kg/4.4lb
