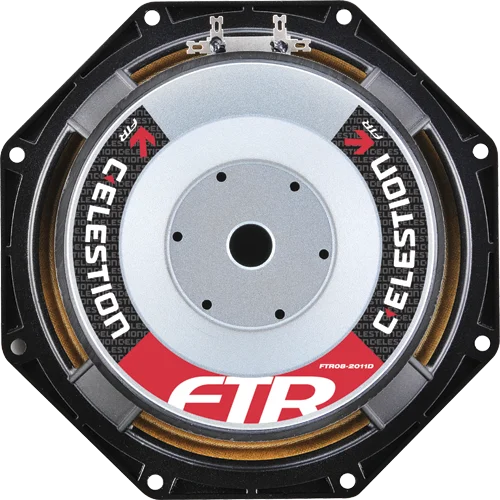

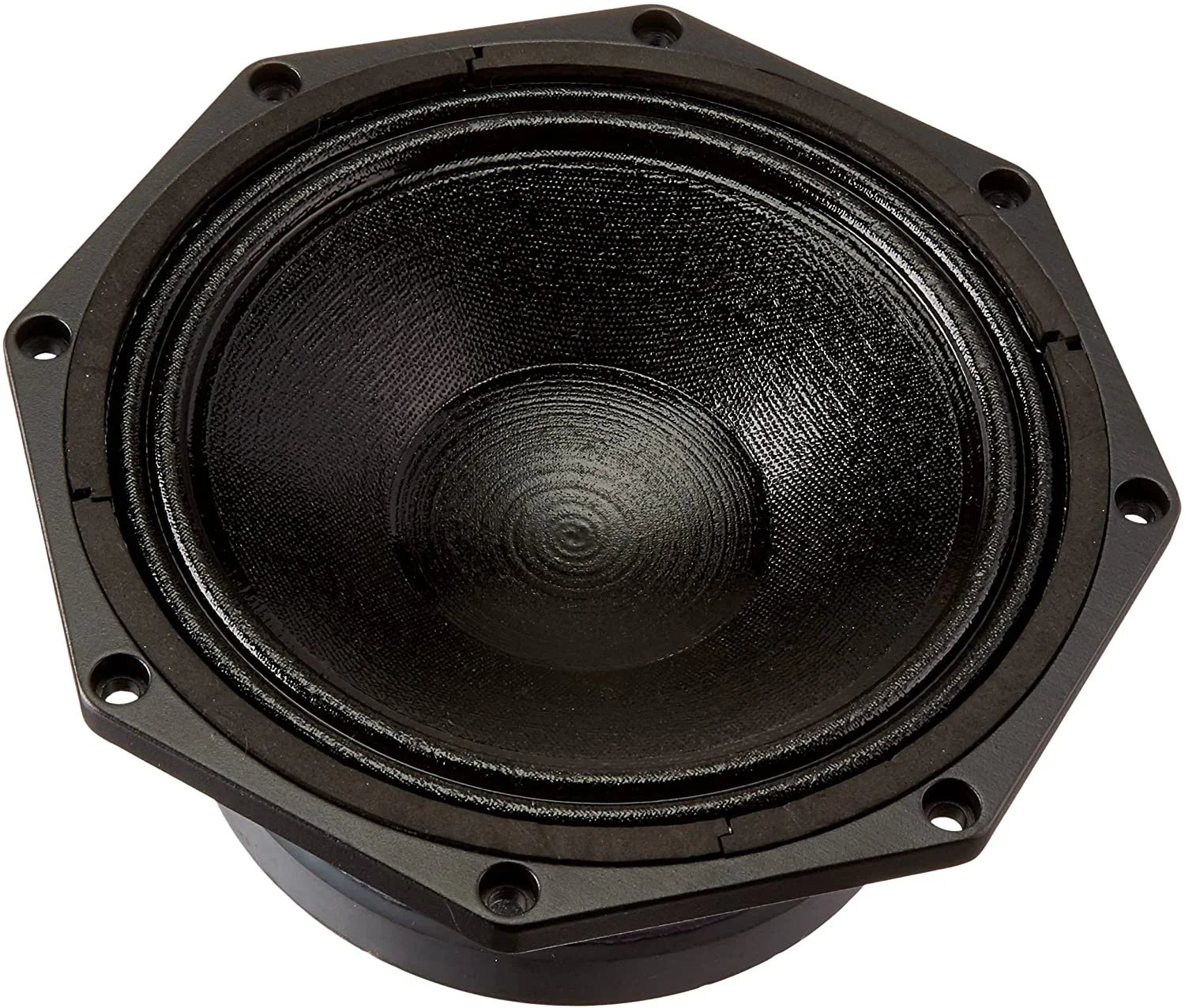

Celestion FTR08-2011D 8″ 200 Watt Professional Woofer Driver 8 Ohm
The versatile Celestion FTR08-2011D 8″ driver offers excellent performance when used in bass and dedicated midrange applications. Its 2″ copper voice coil is set onto a polyimide former, which assures good long-term resistance to the detrimental effects of extreme high temperatures. An M-roll cone surround, for controlled excursion, is combined with an optimized Kevlar-loaded paper cone. This ensures the speaker’s frequency response is smooth and extended. The octagonal frame allows for closer driver-to-driver spacing, reducing comb-filtering effects in the mid to high frequency range.
Specifications
- Nominal Diameter…………………………………….8″
- Power Handling (RMS)……………………………..200 Watts
- Power Handling (max)………………………………400 Watts
- Impedance………………………………………………8 ohms
- Frequency Response……………………………….70 to 6,000 Hz
- Sensitivity……………………………………………….93 dB 1W/1m
- Voice Coil Diameter…………………………………2″
Thiele-Small Parameters
- Resonant Frequency (Fs)……………………….…………………86.1 Hz
- DC Resistance (Re)………………………………………………….5.82 ohms
- Voice Coil Inductance (Le)…………………….…………………..0.38 mH
- Mechanical Q (Qms)…………………………….…………………..2.24
- Electromagnetic Q (Qes)…………………..……………………….0.54
- Total Q (Qts)……………………………………..……………………..0.44
- Compliance Equivalent Volume (Vas)……..…………………..0.32 ft.³
- Mechanical Compliance of Suspension (Cms)……………….0.12 mm/N
- BL Product (BL)…………………………………………………….12.71 Tm
- Diaphragm Mass Inc. Airload (Mms)……………………….….27.75g
- Moving Mass Of Diaphragm (Mmd)……………………………25.01 g
- Maximum Linear Excursion (Xmax)……………………………3.5 mm
- Surface Area of Cone (Sd)………………………………………226 cm²
- Weight………………………………………………………………..9.0000 lbs.
Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)
- Sealed Volume………………………………………………………………..0.15 ft.³Sealed F3152 Hz
- Vented Volume………………………………………………………………..0.39 ft.³Vented F375 Hz
