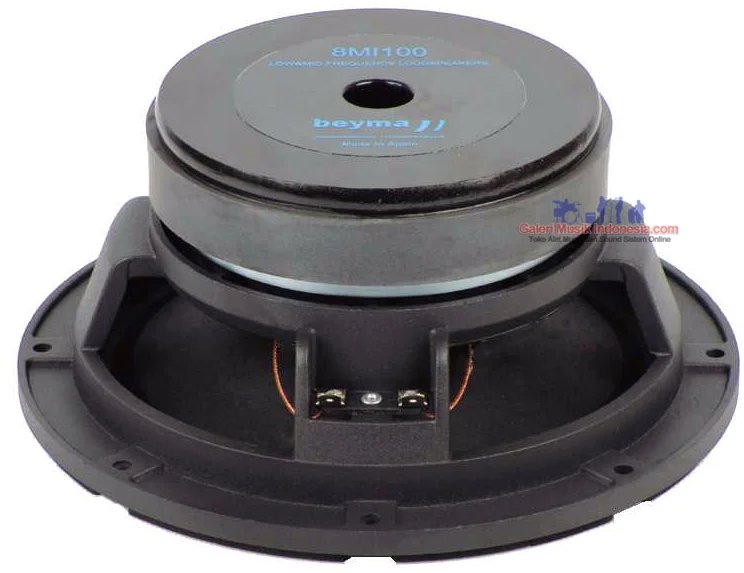

Beyma 8 MI 100 8 Inch Pro Midrange Speaker

• NEW BEYMA 8MI100 8″ MIDRANGE SPEAKER HANDLES A POWERFUL 250 WATTS AES & 500 WATTS PROGRAM POWER HANDLING
• FEATURES A 2″ VOICE COIL & HIGH EFFICIENCY OF 98DB SPL
• LIGHT & STIFF CONE DELIVERS CLEAN VERY RESPONSIVE MIDS
• VERY LOW DISTORTION W/ CONTROLLED DISPERSION UP TO 3KHZ
• DESIGNED FOR HIGH QUALITY P.A. VOCAL AND SOUND SYSTEM MIDRANGE APPLICATIONS

​

Specifications
Nominal Basket Diameter	8″ / 200mm
Impedance	8 ohms
AES Power Rating	250 Watts
Program Power	500 Watts
Frequency Response	150Hz – 7.0KHz
Sensitivity (1W/1m)	98dB
Voice Coil Diameter	2″ / 51.7mm
Voice Coil Length	9 mm
Air Gap Height	7 mm
BL Factor	9.8 N/A
Magnetic Assembly Weight	6.17 lb. / 2.8 kg.
Mounting Information
Overall Diameter	8.35” / 212mm
Bolt Circle Diameter	7.8” / 198mm
Baffle Cutout Diameter-
– Front Mount	7.12″ / 181mm
– Rear Mount	7.2″ / 183mm
No. Of Mounting Holes	8
Volume Displaced By Driver	0.056 ft3  /  1.5 Liters
Overall Depth	3.7″ / 94mm
Net Weight	6.83 lb. / 3.1 kg.
Shipping Weight	7.15 lb. / 3.25 kg.
Materials
Basket	Die Cast Aluminum
Cone	Paper (Light & Stiff)
Surround	Plasticised Cloth
Voice Coil	Edgewound Aluminum Wire
Spider	Cotton
Magnet	Ferrite
Thiele-Small Parameters
Resonant Frequency (fs)	90 Hz
Impedance (Re)	6.0 ohms
Coil Inductance (Le)	.2 mH
Mechanical Q (Qms)	8.5
Electrical Factor(Qes)	.6
Total Q (Qts)	.56
Comp. Equivalent Vol. (Vas)	.46 ft3 / 13 Liters
Voice Coil Overhang (Xmax)	1.0 mm
Diaphragm Mass (Mms)	17 Grams
Reference Efficiency	1.5%
Displacement Volume (Vd)	22.0 cm3

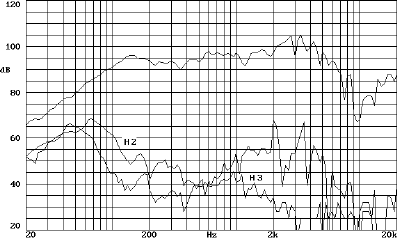

FREQUENCY RESPONSE & DISTORTION CURVES
MOUNTING INFORMATION
