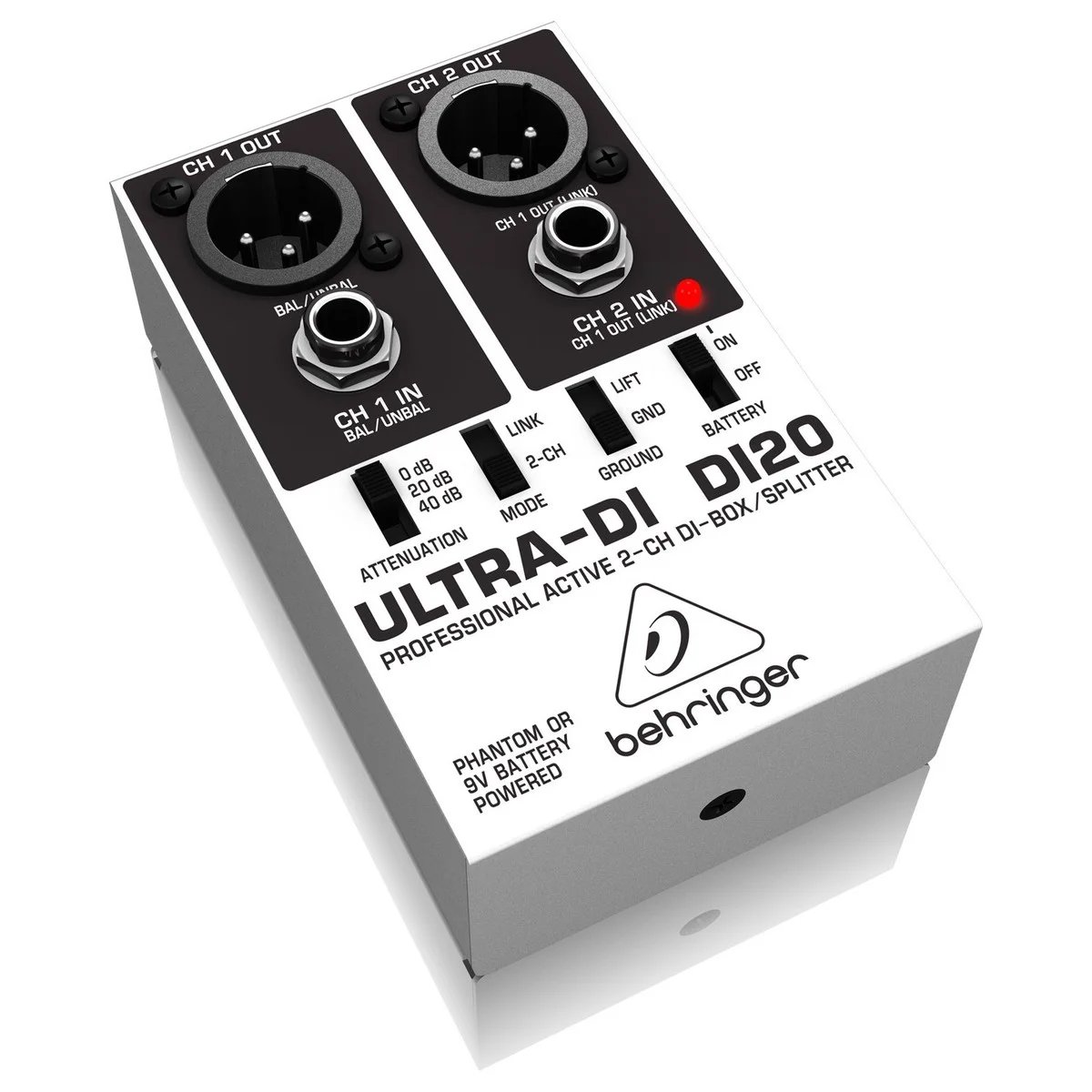

Behringer Di20 2 Channel Active Direct Box / Splitter

The Behringer Ultra-DI DI20 Active 2-Channel DI-Box/Splitter can convert two separate unbalanced 1/4″ inputs into two balanced XLR outputs. Need a signal splitter? The DI20 does that too. Whether you’re a keyboardist, guitarist, or bassist, you’ll marvel at the flexibility this little box gives you. Feed it two mono signals, a stereo signal, or a split signal feeding two separate amps. You also get a groundlift and a 3-position input attenuator to school unruly signals – so you can even connect it to your guitar amp’s speaker output! The Behringer Ultra-DI DI20 is cool.

Behringer Ultra-DI DI20 Active 2-Channel DI-Box/Splitter Features at a Glance:

• Multi-purpose direct injection box for stage and studio applications
• Provides impedance and signal matching for direct connection of instruments to mixers and amplifiers
• Converts 2 independent unbalanced 1/4” TRS line inputs into 2 balanced XLR outputs
• Additional Split mode (channel 1 assigns signal to both XLR outputs)
• Ultra-flat frequency response due to servo-balanced operation
• Internal battery automatically shuts off when phantom power is applied
• Allows direct connection to speaker outputs with up to 3,000W
• Groundlift switch eliminates typical ground loop problems
• Input 2 usable as channel 1 Link output (additional to XLR output)
• TRS and gold-plated XLR connectors
• Ultra-rugged, road-suitable metal case
• High-quality components and exceptionally rugged construction ensure long life
•

• Tech Specs

• Type:DI
• Channels:2
• Pads:-20dB, -40dB
• Ground Lift:Yes
• Inputs:2 x TRS
• Outputs:2 x XLR
• Power Source:48V Phantom Power / 9V battery
• Height:6″
• Depth:5″
• Width:2.375″
• Weight:1.43 lbs.
