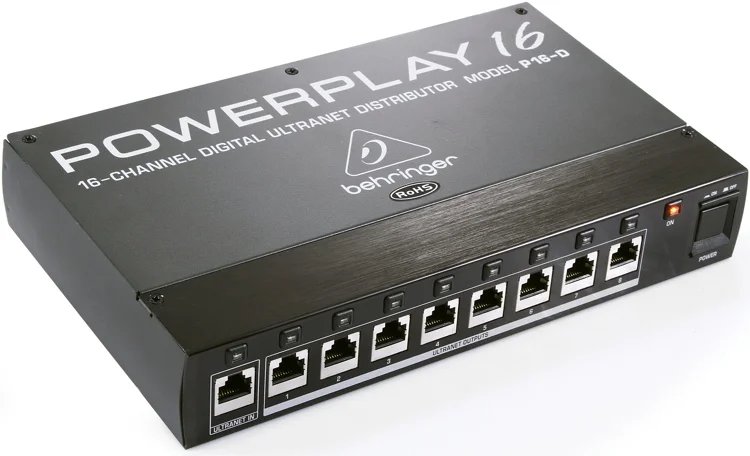

Behringer P16-D 16-channel Distribution Module

If you need to add more channels to your Behringer P16 system, the P16-D distribution module is a quick and easy way to add eight additional P16-M personal monitors, ensuring that everyone has the monitor mix they need. The P16 system is totally digital, so you get great sound and awesome flexibility. The Behringer Powerplay P16-D distribution module is one of the coolest and convenient expansion solutions available. With just one cable you can send sixteen channels of audio, and also power the P16-M monitor units. No need for extra power cables. The P16-D’s compact size saves space, and its CAT5e connectivity allows you to run long cables and daisy-chain up to 48 P16-M monitors without degrading your audio quality. Get the most out of your monitor setup with the Behringer P16-D distribution module.

Features:

• Easy and affordable way to distribute up to 8 additional channels of audio
• Accommodates up to eight Powerplay P16-M personal mixers
• Digital connectivity for low-noise audio
•

• Specifications:

• Digital Processing
  • A/D Conversion: 24-Bit, 44.1 / 48kHz Sample Rate
  • Converter Type: 24-Bit, Delta-Sigma
• System
  • Signal: 16 Channels
  • Latency: <0.9 ms Frequency Response: 20Hz to 20kHz (+0 / -3 dB)
  • Dynamic Range: Typical 92 dB
• Cabling
  • Connectors: RJ45
  • Cables: Shielded CAT5
  • Cable Length: Max. 246 ft / 75 m Recommended
• Digital Inputs/Outputs (Ultranet)
  • Ultranet In: 1 x RJ45
  • Remote Outputs: 8 x RJ45
• Power Supply/Voltage
  • USA/Canada: 120 V, 60Hz
  • UK/Australia/Europe: 220-240 V, 50/60Hz
  • Korea/China: 220-240 V, 50/60Hz
  • Japan: 100 V, 50/60Hz
• Power Consumption: 40W
• Mains Connection: Standard IEC Receptacle
• Weight: 1.1 kg
• Dimensions
  • Height: 44 mm
  • Width: 254 mm
  • Depth: 160 mm
